Ferrari PTU Repair Kit

The factory shift forks in the Ferrari PTU are secured by a small snap ring. That snap ring does not evenly distribute locking pressure along its outer edge. Because of this design limitation, the shift fork bushing has free play. During shifts, the bushing collides with the snap ring repeatedly. Over time, that repeated impact causes the snap ring to break. When the snap ring breaks, the bushing twists. Fluid then leaks past it. The Ferrari PTU Repair Kit from Hollywood Mechanic solves this problem at the source.

Since this failure is mechanical and progressive, it will worsen with every shift cycle. Waiting to address it leads to fluid loss, ATF Low warning lights, and eventual PTU damage. Because the kit targets the root cause rather than the symptom, it delivers a lasting repair that the factory design cannot.

The bushings in this kit are identical to the original Ferrari bushings in every dimension. The only difference is a thicker face. Since the thicker face fills the gap between the bushing and the snap ring, the collision that causes snap ring failure no longer occurs. While the factory bushing allows the impact to build up over thousands of shift cycles, this upgraded bushing stops it entirely from the first shift after installation.

Because the bushing geometry is otherwise unchanged, installation follows the same procedure as the factory component. The upgraded bushing fits directly in place of the original with no modifications to the PTU housing or shift fork assembly.

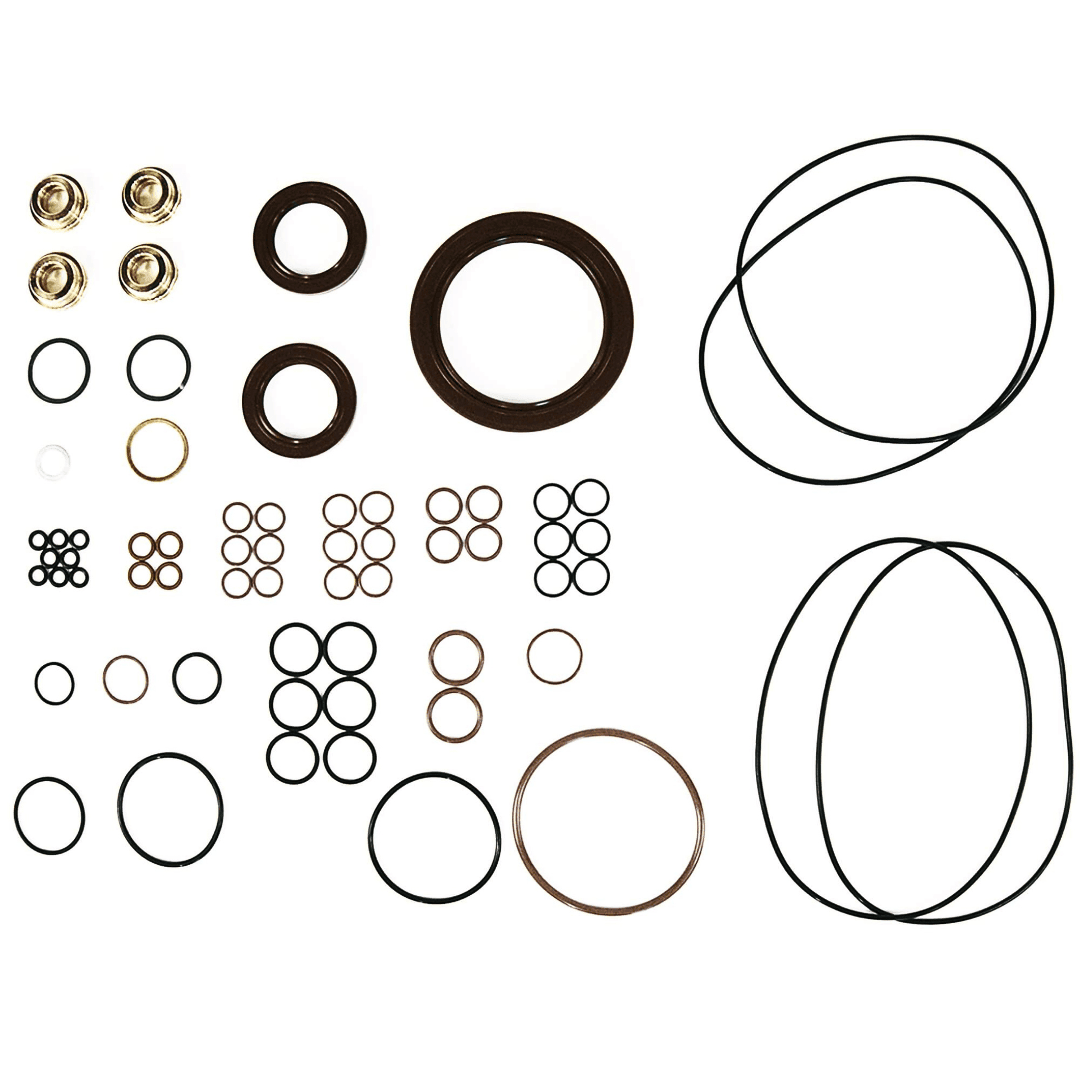

This kit includes all necessary seals and gaskets for the PTU. The only seals not included are the Teflon clutch actuator face seals. Since those seals are highly durable and have not failed in any unit Hollywood Mechanic has serviced. They do not require replacement as part of this repair. The kit covers every other sealing component needed for a complete PTU service.

The Ferrari PTU Repair Kit also resolves the ATF Low warning light that appears when fluid loss from the failed bushing seal drops the ATF level below the sensor threshold. Since the kit stops the leak at its source, the warning light clears once you complete the repair and restore the ATF level.

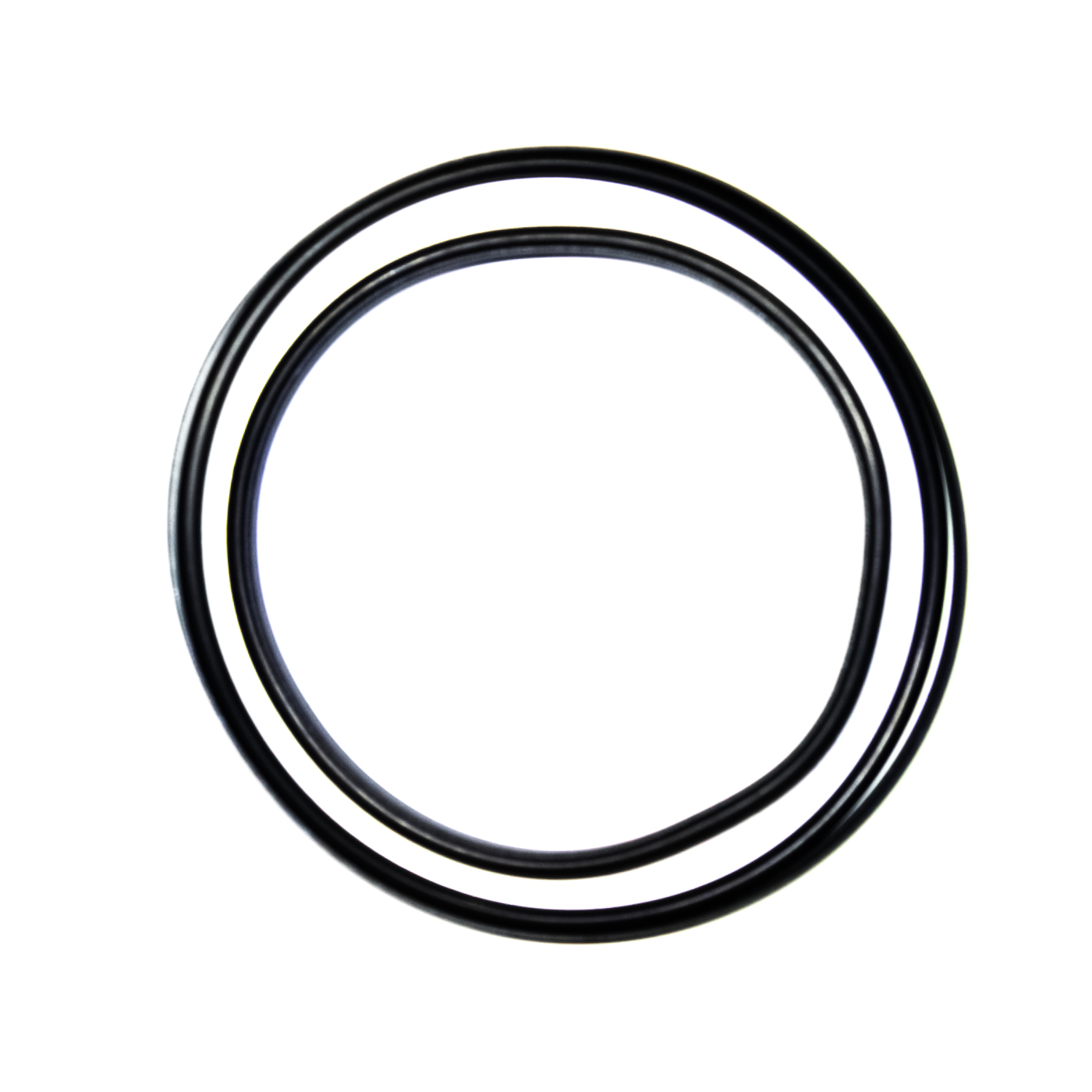

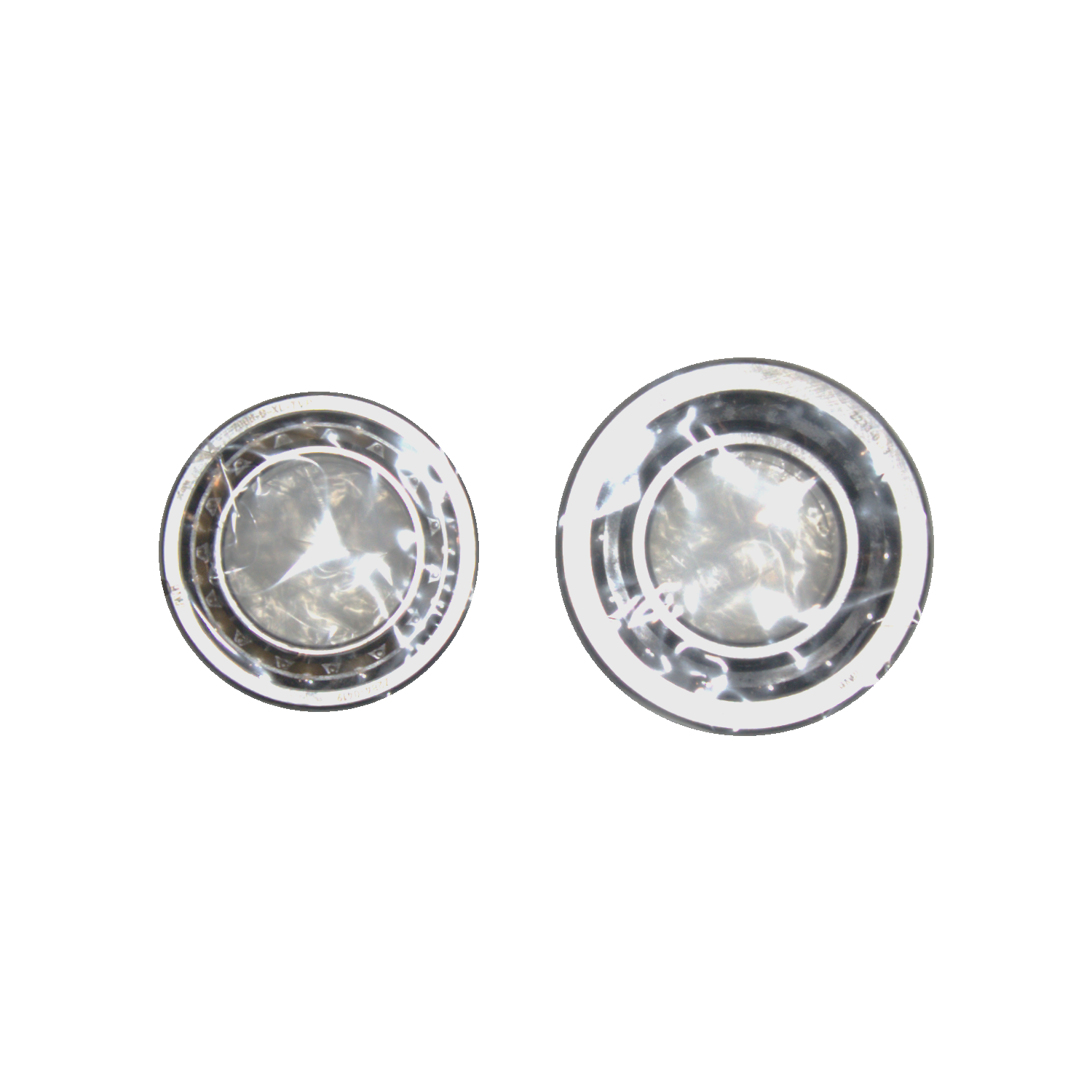

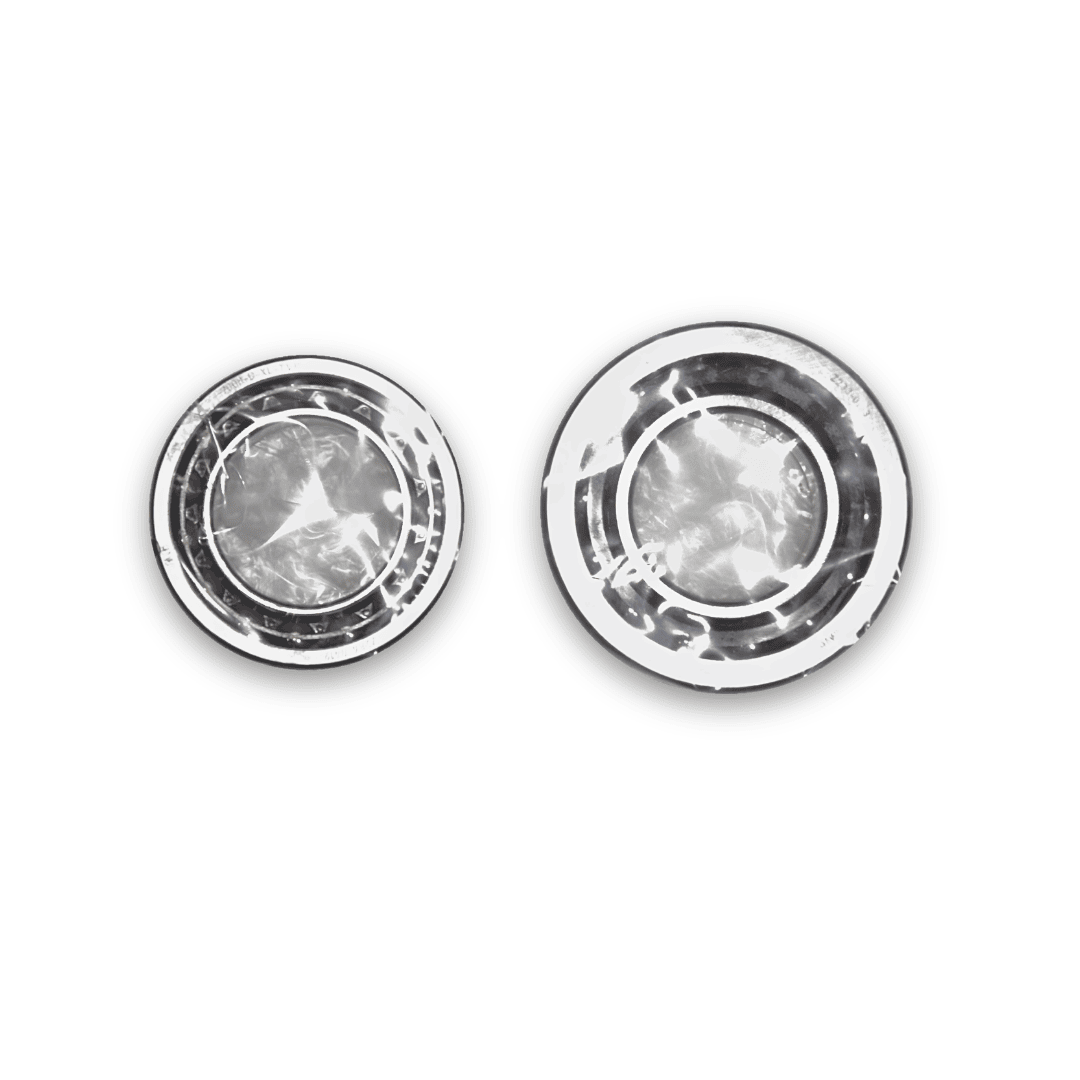

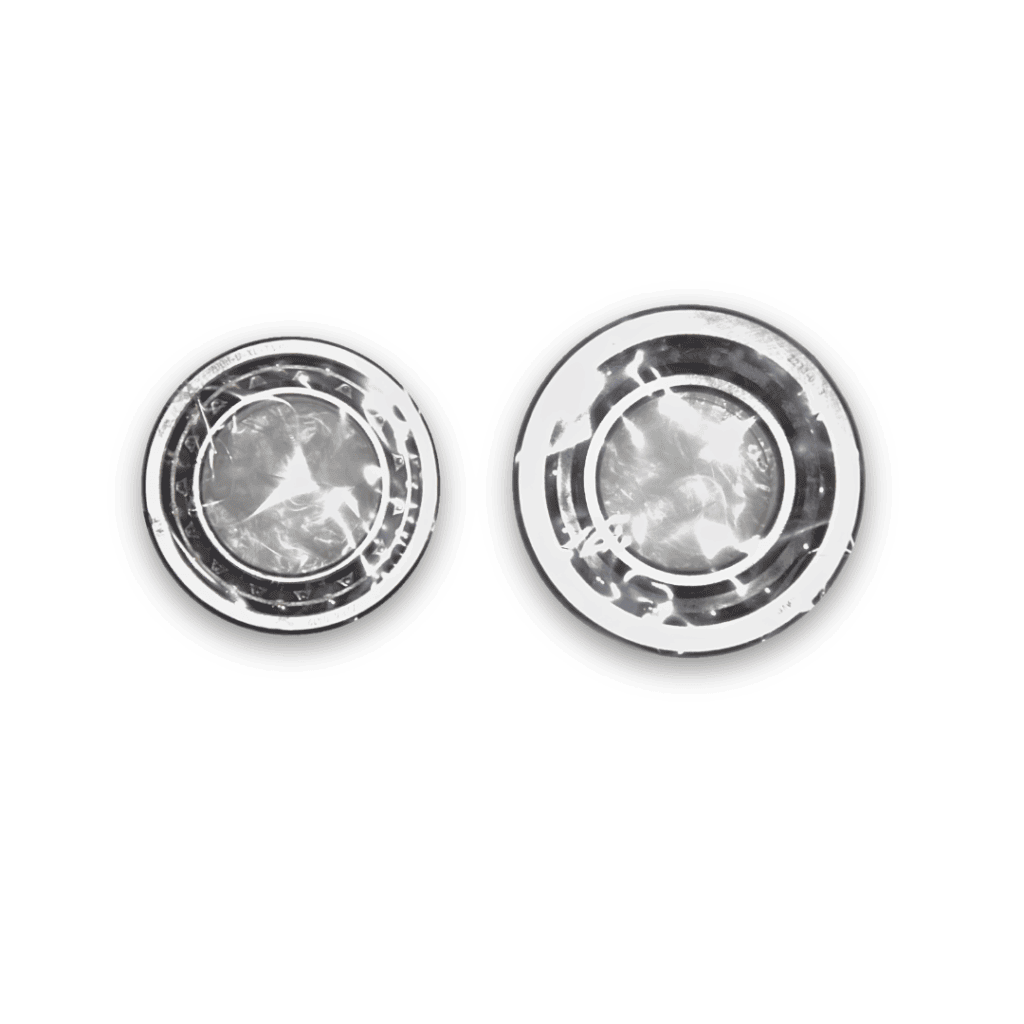

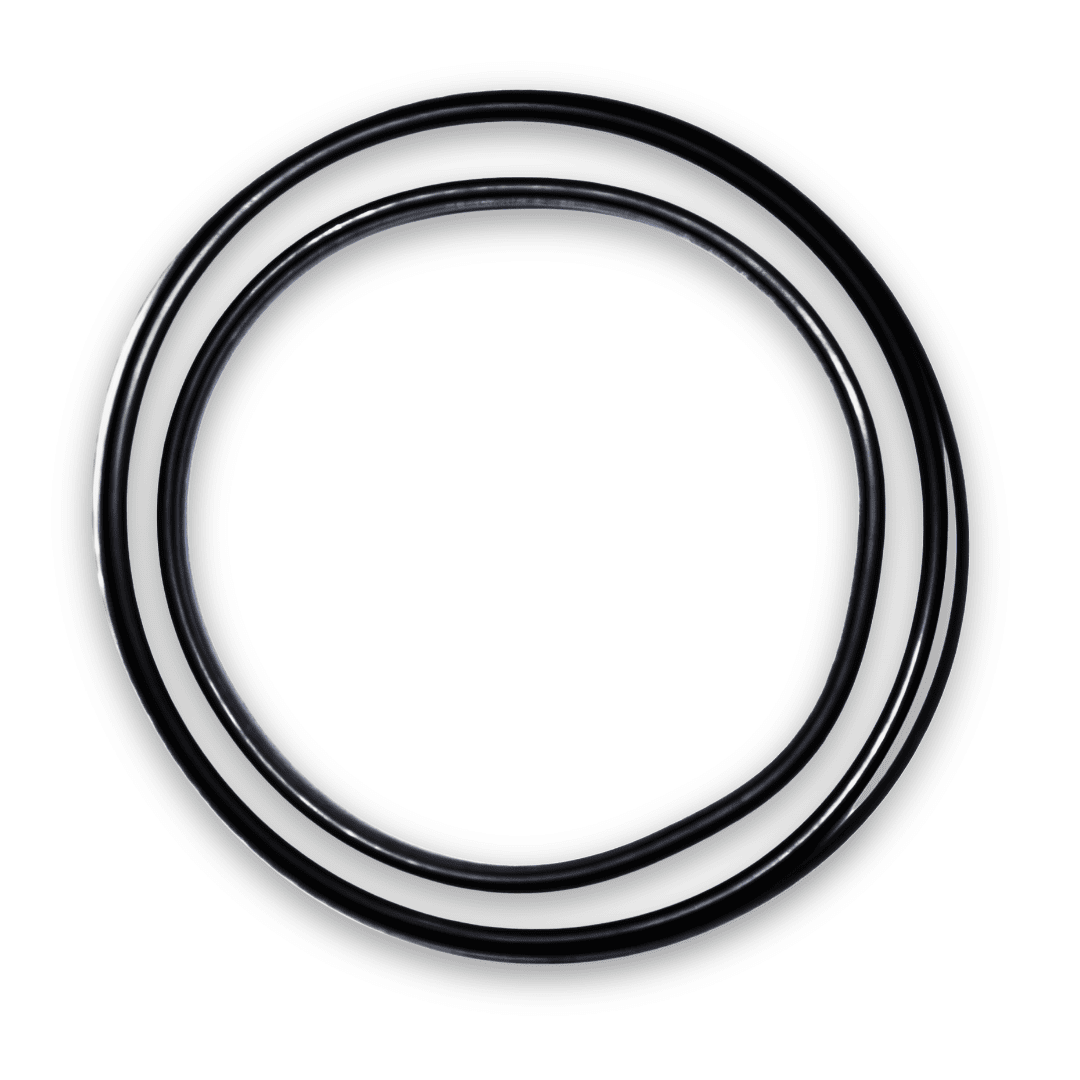

Hollywood Mechanic now offers the PTU clutch seals with clutch basket and ring gear bearings as an optional add on to this kit. If your PTU service includes clutch work, adding this option covers the clutch assembly sealing components in the same order. The hydraulic pressure line and hydraulic return line are also available for purchase separately. Select YES in the item dropdown under the price to add these items to your order.

We also have a Ferrari PTU Hydraulic Pressure Line and a Ferrari PTU Hydraulic Return Line available for purchase. Click the links to add those to your order.
