Ferrari PTU Hydraulic Return Line

The Ferrari PTU Hydraulic Return Line is a critical part of the PTU hydraulic system. It connects the oil reservoir to the PTU control fluid outlet. Its job is to return hydraulic fluid from the control circuit back to the reservoir. This allows the pump to maintain consistent pressure throughout the system. Without this line working correctly, the PTU cannot sustain the pressure it needs to engage the front axle. When that happens, the vehicle drops to rear wheel drive only. In severe cases, it loses drive entirely.

The PTU hydraulic system operates as a pressurized circuit. First, the electronic pump builds pressure. Then, the high pressure line delivers that pressure to the valve body. Finally, the return line carries fluid back from the control fluid outlet to the reservoir. This return path is not a low pressure drain line. It carries fluid under pressure and must maintain a sealed connection at both ends. The step down adapter on this line is a precision fitting. It transitions the hose diameter to match the port size on the PTU control fluid outlet. If the adapter fails or the hose cracks, the circuit loses fluid and the system drops out of function.

The PTU hydraulic lines on the Ferrari 458, FF, and GTC4 Lusso operate in a demanding environment. Heat cycling from the engine bay stresses the hose material over time. Vibration from the drivetrain adds to that stress. Because the factory hose uses a rigid fuel line construction, it becomes brittle with age. The adapter fittings are particularly vulnerable. They are the transition point between two different diameters under pressure. Owners on FerrariChat have documented cases where the return line develops a slow weep at the adapter connection. This often goes unnoticed until the PTU reservoir drops below the minimum level. By that point, the system has already been operating under stress.

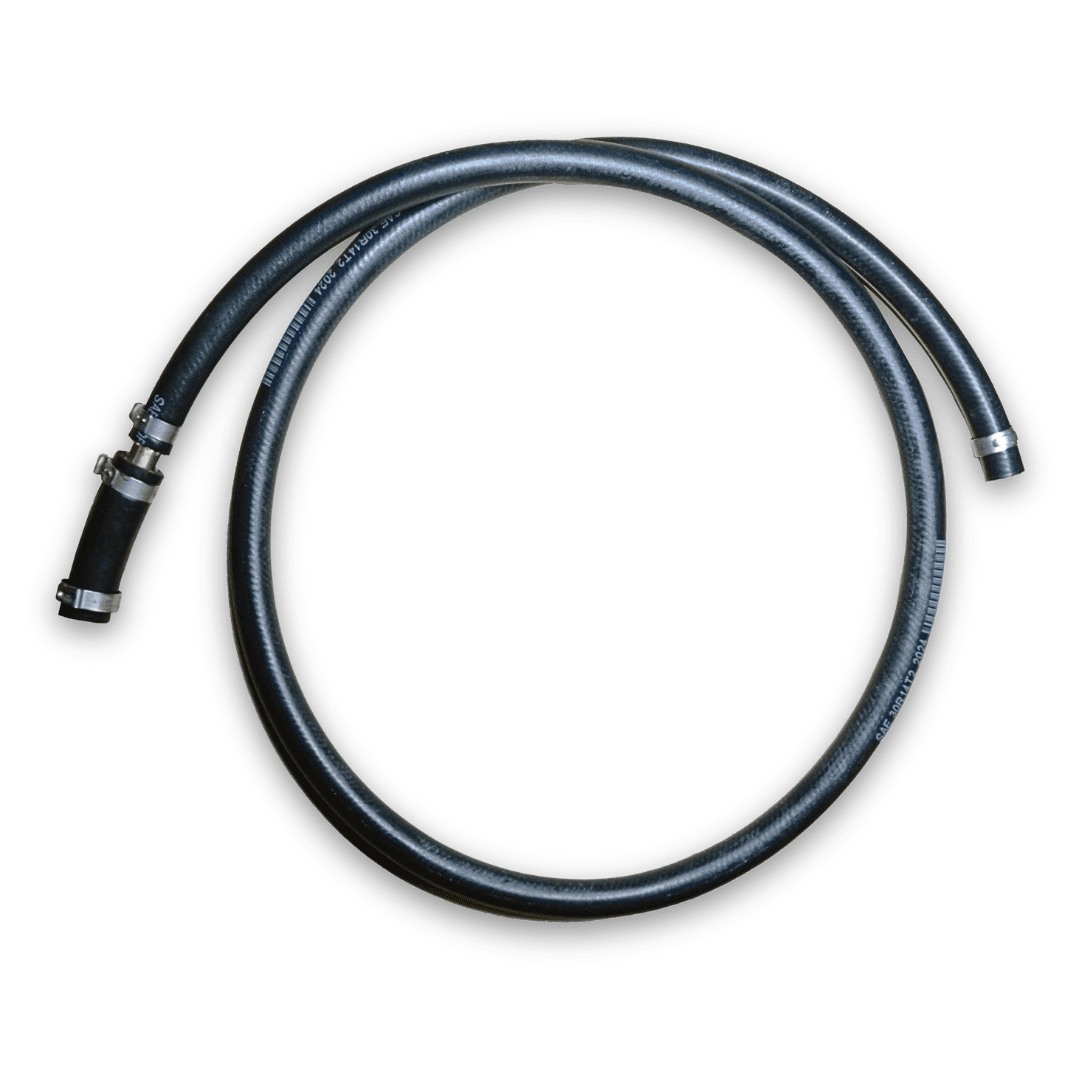

Our Ferrari PTU hydraulic return line is a direct fit replacement. It is built to the same high pressure fuel line specification as the factory part. The step down adapter is included and pre-fitted to the correct end of the hose. So the replacement installs exactly as the factory line did. There is no modification to the routing or the port connections. The hose material is rated for the operating pressure of the PTU hydraulic circuit. It is also compatible with the hydraulic fluid specification used in the Ferrari PTU system. This is not a universal hose with approximate dimensions. It is a purpose built replacement for this specific application.

Before disconnecting the line, drain the PTU hydraulic reservoir. Then torque the step down adapter to the correct specification at the control fluid outlet port. This prevents weeping at the connection after installation. We also recommend inspecting the high pressure line at the same time. Both lines share the same hydraulic circuit and have a similar service life. If one line has failed, the other is likely approaching the same condition. Replacing both lines together during a single service event eliminates the need to drain and refill the system twice.

This replacement line fits all Ferrari AWD platforms using the PTU hydraulic system. Compatible vehicles include the Ferrari 458 Italia, 458 Spider, Ferrari FF, and Ferrari GTC4 Lusso. If you need to confirm fitment for a specific build year or regional specification, contact us before ordering.
