Ferrari PTU Hydraulic Pressure Line

The Ferrari PTU Hydraulic Pressure Line is one of the most overlooked failure points on the 458, FF, and GTC4 Lusso. This high pressure line carries hydraulic fluid from the electronic pump mounted in the front driver wheel well to the PTU valve body. Without consistent pressure in this line, the PTU cannot engage the front axle, the system loses drive, and the vehicle becomes undrivable. The factory installed this line under the front frame rail. That routing decision exposes it to direct contact with road debris, steep driveway impacts, and bottom scrapes. When the line is damaged, Ferrari does not offer it as a standalone replacement part. That is the problem this product solves.

The front frame rail sits low on all Ferrari AWD platforms. Any bottom scrape severe enough to contact the frame rail will contact this line first. The factory hose is a rigid hydraulic line with no flexibility and no protection against impact. A single hard scrape can crush, crack, or sever the line entirely. When that happens, hydraulic fluid drains from the PTU reservoir and the system fails immediately. Owners who have experienced this failure describe it as sudden and complete. There is no warning light sequence that gives you time to pull over safely. The PTU simply stops working.

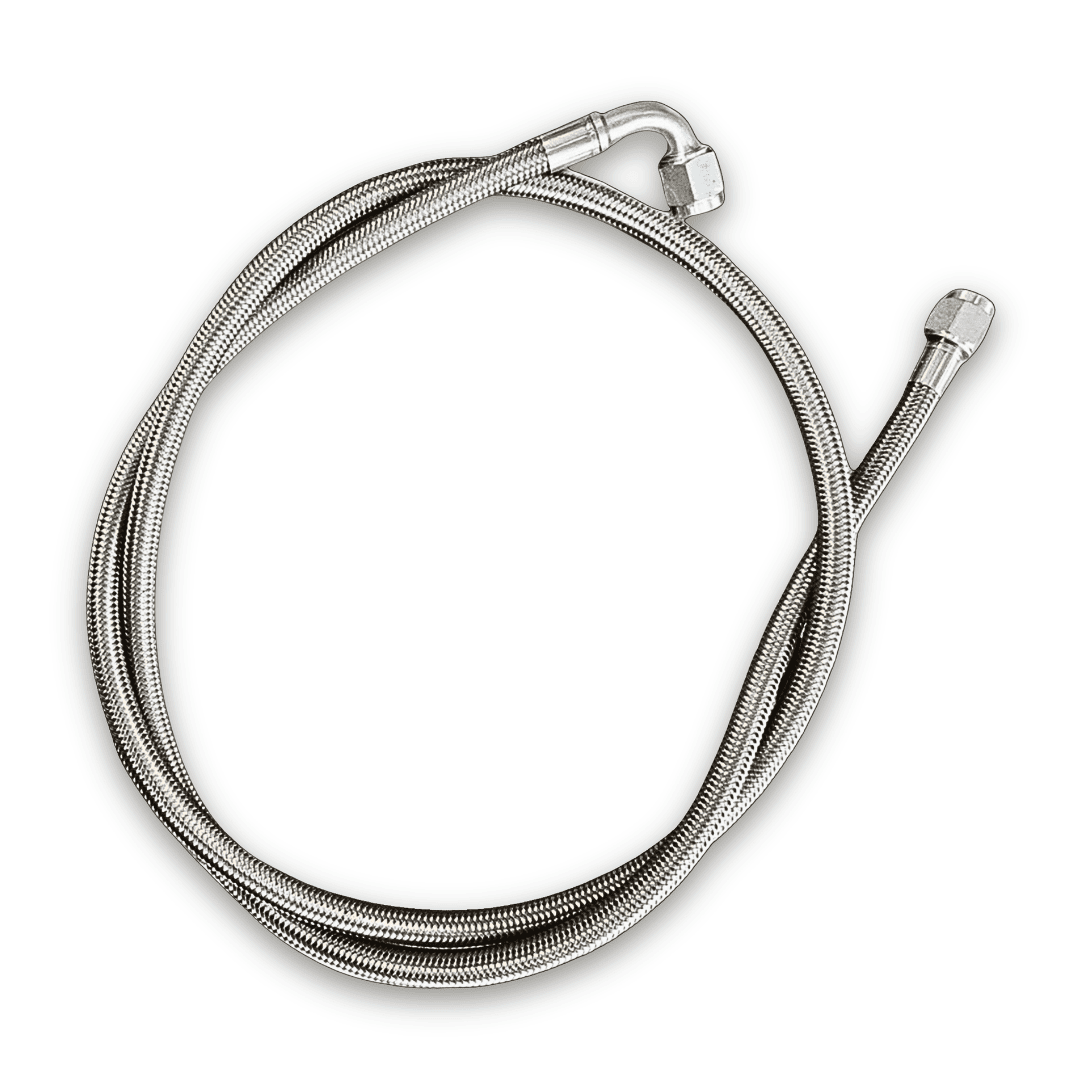

Our Ferrari PTU hydraulic pressure line upgrade addresses both the material failure and the routing problem. The core of the upgrade is a teflon lined steel braided hose. The steel braiding provides a burst pressure rating that far exceeds the factory rigid line. The teflon inner lining creates a smooth, chemically resistant fluid path that maintains consistent flow volume regardless of operating temperature. The flexibility of the braided construction allows the line to absorb minor impacts without cracking or deforming. This is the same construction standard used in professional motorsport hydraulic systems.

Removing the factory fittings from the PTU pump and valve body is one of the most frustrating parts of this repair. The original fittings are steel threaded into aluminum ports. Years of heat cycling and hydraulic pressure cause the threads to seize. Attempting to remove a seized fitting without the right approach almost always results in a stripped or rounded fitting. We include precision machined bronze fittings for both ends of the line. Bronze provides superior thread engagement in aluminum ports and resists the galling that destroys steel fittings during removal. If your original fittings are damaged during the process, you have exact replacements ready. This eliminates the need to source specialized metric hydraulic fittings mid-repair.

Installing a new line under the frame rail solves the immediate problem but does not solve the root cause. We strongly recommend rerouting the new Ferrari PTU hydraulic pressure line above the front frame rail during installation. The flexibility of the steel braided hose makes this reroute straightforward. The line can be positioned above the rail and secured with appropriate clamps without kinking or restricting fluid flow. Once rerouted, the line sits in a protected position where it cannot be contacted by road debris or bottom scrapes. This is the repair we perform in our own shop. It is the only version of this repair that does not require you to come back.

This upgrade is compatible with all Ferrari AWD platforms that use the Getrag 7DCL750 transmission with the PTU hydraulic system, including the Ferrari 458 Italia, 458 Spider, Ferrari FF, and Ferrari GTC4 Lusso. If you are unsure whether this line fits your specific build year and configuration, contact us before ordering.
