What is the weight of the Getrag 7DCL750 CCP Large Front Plate?

The OEM Getrag 7DCL750 CCP Large Front Plate weighs exactly 4 lbs, ensuring structural rigidity within the valve body assembly.

What are the shipping dimensions for this front plate?

The shipping dimensions for the CCP Large Front Plate are 12 by 10 by 2 inches, securely packaged to prevent any surface damage during transit.

Is this an aftermarket or genuine OEM Getrag part?

This is a brand new, genuine OEM Getrag component. We do not sell aftermarket valve body plates because exact factory tolerances are required for proper hydraulic sealing.

Which vehicles use this specific CCP large front plate?

This plate is a direct fit for the Getrag 7DCL750 dual clutch transmission found in the Ferrari 458 Italia, Ferrari California, Mercedes SLS AMG, and Ford GT.

Why does the original valve body front plate fail?

The original plate typically fails due to a combination of extreme thermal stress and contaminated transmission fluid. Metallic debris in the fluid scores the aluminum surface, while heat cycles cause the plate to warp, leading to hydraulic cross leaks.

Can a scored or warped CCP front plate be machined flat?

No. Attempting to machine or resurface a damaged valve body plate will alter the critical internal volume of the hydraulic circuits, ruining the calibration of the entire valve body. Complete replacement is the only correct repair method.

What is the return policy for this transmission component?

We offer a 30 day return policy on the CCP Large Front Plate, provided the part remains in new, uninstalled condition in its original packaging.

What are the symptoms of a failing CCP large front plate?

Common symptoms include jerky or delayed shifts, inability to engage drive from park, gearbox warning lights on the dashboard, and a sudden loss of either odd or even gears due to hydraulic pressure loss.

How does a warped front plate cause odd or even gear loss?

The 7DCL750 uses two separate clutches controlled by the valve body. If the front plate warps and loses pressure on one side of the hydraulic circuit, the transmission will completely lose the ability to engage half of its gears.

Will a damaged front plate affect the transmission solenoids?

Yes. When hydraulic pressure fluctuates due to cross leaks on a scored plate, the Transmission Control Unit commands the solenoids to work harder to compensate. This constant overworking often leads to premature solenoid failure.

Do I need to replace the CCP seals when installing a new front plate?

Yes, it is highly recommended to install a complete CCP Rebuild Kit alongside the new front plate to ensure all O rings and gaskets provide a perfect seal against the fresh machined surface.

Is TCU recalibration required after replacing the front plate?

Yes. Because the new plate restores factory hydraulic pressure, the Transmission Control Unit must be recalibrated using factory diagnostic software to learn the new fluid dynamics and optimize shift points.

Can I replace the front plate without removing the transmission?

While the Clutch Control Panel can technically be accessed with the transmission in the car on some models, complete removal is strongly recommended to ensure a clean, debris free environment during the valve body rebuild.

What causes the metallic debris that scores the valve body plates?

Metallic debris typically originates from normal wear on the synchronizer rings, clutch packs, or in early models, the ring and pinion gears. If the fluid is not changed regularly, this debris circulates through the valve body.

How often should the transmission fluid be changed to protect the valve body?

To protect the delicate aluminum valve body plates from scoring, we recommend changing the DCT fluid every 30,000 miles, or more frequently if the vehicle sees track use.

Does the front plate come with new mounting hardware?

The CCP Large Front Plate is sold individually. Mounting hardware and seals must be purchased separately or reused if they meet factory specifications.

Can a weep hole leak be caused by a warped front plate?

A weep hole leak is typically caused by a failing main shaft seal, not the front plate. However, if the transmission is removed to fix a weep hole leak, it is the perfect time to inspect the valve body plates for scoring.

What is the difference between the CCP and the SAP in the 7DCL750?

The CCP (Clutch Control Panel) manages the hydraulic pressure for clutch engagement, while the SAP (Shift Actuator Panel) controls the physical movement of the shift forks. Both have valve body plates susceptible to scoring.

Why is the 7DCL750 valve body so sensitive to contamination?

The Getrag 7DCL750 operates at very high hydraulic pressures with incredibly tight clearances between the aluminum plates and steel valves. Even microscopic debris can scratch the aluminum, creating a path for high pressure fluid to escape.

How do I verify if my front plate is warped?

Once the valve body is disassembled, the plate must be cleaned and checked with a precision machinist straight edge and feeler gauges. Any deviation from perfect flatness requires replacement.

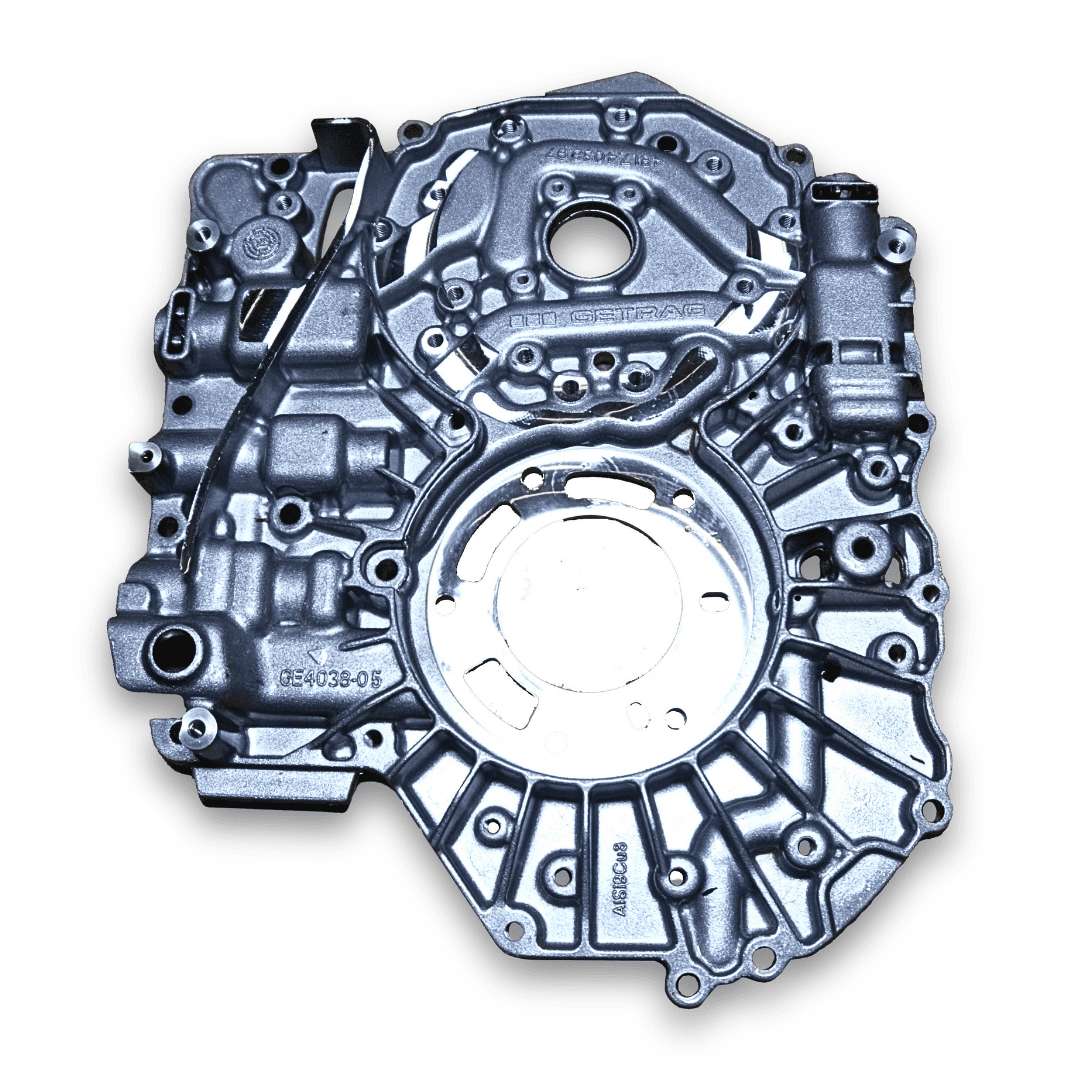

Getrag 7DCL750 CCP Large Front Plate Genuine OEM Part

Getrag 7DCL750 CCP Large Front Plate – Genuine OEM

The dual clutch transmission in your supercar relies on absolute precision to manage hydraulic pressure. When shifting becomes erratic or you experience a sudden loss of odd or even gears, the valve body is often the culprit. The Getrag 7DCL750 CCP Large Front Plate is a critical structural component that seals the hydraulic circuits within the Clutch Control Panel. Over time, contaminated transmission fluid and extreme thermal stress can cause the original plate to warp or develop deep scoring.

When this surface damage occurs, hydraulic fluid bypasses the intended channels, leading to pressure loss, clutch slip, and violent shifting behavior. Because the tolerances within the Getrag 7DCL750 are incredibly tight, attempting to machine or resurface a damaged plate will alter the internal volume and ruin the calibration of the entire valve body. The only correct way to repair this, is a complete replacement.

Genuine OEM Precision for Your Supercar

Installing a new OEM Getrag 7DCL750 CCP Large Front Plate provides exact factory specifications for your transmission rebuild. This component provides the exact machined flatness required to seal the complex hydraulic pathways without relying on excessive gasket material. It is a direct fit for the Ferrari 458, Ferrari California, Mercedes SLS AMG, and Ford GT.

By replacing a scored or warped plate during your transmission service, you protect the delicate solenoids and clutch packs from further damage caused by pressure fluctuations. Whether you are addressing a specific fault code or performing a comprehensive preventative rebuild, this genuine replacement part keeps your dual clutch system operating with the lightning fast response it was designed to deliver.

Features and Benefits

Genuine OEM Component delivers exact factory fitment and material quality for your transmission rebuild.
Restores Hydraulic Integrity by providing a perfectly flat sealing surface to eliminate internal cross leaks.
Prevents Pressure Loss maintaining consistent fluid delivery to the clutch packs and shift actuators.
Direct Replacement for the Ferrari 458, Ferrari California, Mercedes SLS AMG, and Ford GT.
Eliminates Machining Risks by replacing the damaged plate rather than altering critical internal volumes.
Cures Erratic Shifting caused by fluid bypassing scored channels in the original valve body plate.
Protects Delicate Solenoids from the stress of compensating for fluctuating hydraulic pressure.
Required Rebuild Component when addressing severe fluid contamination or overheating damage.
Precision Machined Surface requires no modification or preparation prior to installation.
Long Term Reliability so your supercar delivers the performance you expect on the street or the track.
