What is the weight and shipping size of the Getrag 7DCL750 CCP Middle Plate?

The Getrag 7DCL750 CCP Middle Plate weighs 3.5 lbs. The shipping dimensions are 12 inches long, 10 inches wide, and 1 inch high.

Is this CCP middle plate an OEM or aftermarket part?

This is a genuine OEM replacement part. We do not supply aftermarket plates because they often fail to meet the strict dimensional tolerances required for proper fluid routing, leading to immediate pressure faults.

What is the function of the CCP middle plate in the transmission?

The CCP middle plate is a critical structural component that routes high pressure hydraulic fluid between the solenoids and the clutch packs. It provides a perfectly flat mating surface for the valve body gaskets to ensure maximum hydraulic integrity.

What happens if the CCP middle plate becomes warped or scored?

If the middle plate warps or suffers surface scoring from contaminated fluid, it allows hydraulic pressure to bleed across circuits. This internal cross leak leads to delayed engagement, rough downshifts, and eventual clutch failure.

Why is precision so important when replacing the CCP middle plate?

Precision is non negotiable because the valve body operates under extreme pressure. Even microscopic deviations in the plate's flatness can cause fluid to bypass the gaskets, resulting in erratic shifting and transmission control unit fault codes.

What is the return policy for the Getrag 7DCL750 CCP Middle Plate?

We offer a 30 day return policy on the Getrag 7DCL750 CCP Middle Plate, provided the part is in new, uninstalled condition and in its original packaging.

Can a warped middle plate cause a hydraulic cross leak?

Yes. A hydraulic cross leak occurs when fluid pressure escapes from one designated channel into an adjacent one. A warped middle plate compromises the gasket seal, allowing this high pressure fluid to cross over, which confuses the transmission control unit and causes erratic shifting.

What are the symptoms of a failing valve body in the Getrag 7DCL750?

Common symptoms of a failing valve body include rough or delayed shifts, spontaneous downshifts or upshifts, inability to engage gears, and the transmission dropping into neutral or limp mode. These are often caused by internal pressure loss from a damaged middle plate.

How does contaminated fluid damage the CCP middle plate?

Dirty or burnt transmission fluid carries microscopic metallic debris and clutch friction material. As this abrasive fluid is forced through the valve body at high pressure, it acts like liquid sandpaper, scoring the machined surfaces of the middle plate and destroying the gasket seal.

Will a damaged middle plate trigger a transmission fault code?

Yes. If the middle plate is scored or warped, the resulting pressure loss will be detected by the CCP pressure sensors. The transmission control unit will log a fault code, illuminate the gearbox warning light, and often disable the affected clutch circuit.

Do I need to replace the gaskets when installing a new middle plate?

Absolutely. You must never reuse old valve body gaskets. When installing a new CCP middle plate, you must use a new OEM gasket kit to ensure a perfect, leak free seal between the machined surfaces.

Can I machine or resurface my old CCP middle plate?

No. Machining or resurfacing the middle plate alters its critical thickness and dimensional tolerances. This will change the compression rate on the gaskets and the seating depth of the solenoids, leading to guaranteed hydraulic failure. The plate must be replaced.

Is the CCP middle plate included in the standard rebuild kit?

The middle plate is sold separately from the standard seal and gasket kits. It should be inspected carefully during disassembly and replaced if any scoring, warping, or wear is detected on the mating surfaces.

How do I know if my middle plate is warped?

During a transmission rebuild, the technician must check the middle plate for flatness using a precision straight edge and feeler gauges. Any deviation from the factory specification indicates warping, and the plate must be discarded.

Can a bad middle plate cause the transmission to lose odd or even gears?

Yes. The valve body routes pressure independently to the odd and even clutch packs. If a cross leak or pressure drop occurs on one side of the middle plate, the transmission control unit will shut down that specific clutch, resulting in the loss of half your gears.

What torque specification should be used when installing the middle plate?

The retaining bolts for the Clutch Control Panel must be tightened to the exact factory torque specification and in the correct sequence. Over tightening can warp the new plate, while under tightening will cause immediate pressure leaks.

Does the middle plate affect the operation of the shift solenoids?

Yes. The shift solenoids mount directly to the valve body and rely on the middle plate to route their pressurized fluid to the correct actuators. If the plate is damaged, the solenoids cannot control the clutches accurately, regardless of how well the solenoids themselves are functioning.

Why is the Getrag 7DCL750 valve body prone to wear?

The 7DCL750 is a high performance transmission that operates under extreme heat and pressure, especially during track use or aggressive driving. This thermal stress, combined with the natural shedding of clutch material, accelerates wear on the internal aluminum components like the middle plate.

Can I replace the middle plate without removing the transmission from the car?

No. Accessing the Clutch Control Panel and the middle plate requires splitting the transmission case. The Getrag 7DCL750 must be completely removed from the vehicle and placed on a clean workbench to perform this repair safely and correctly.

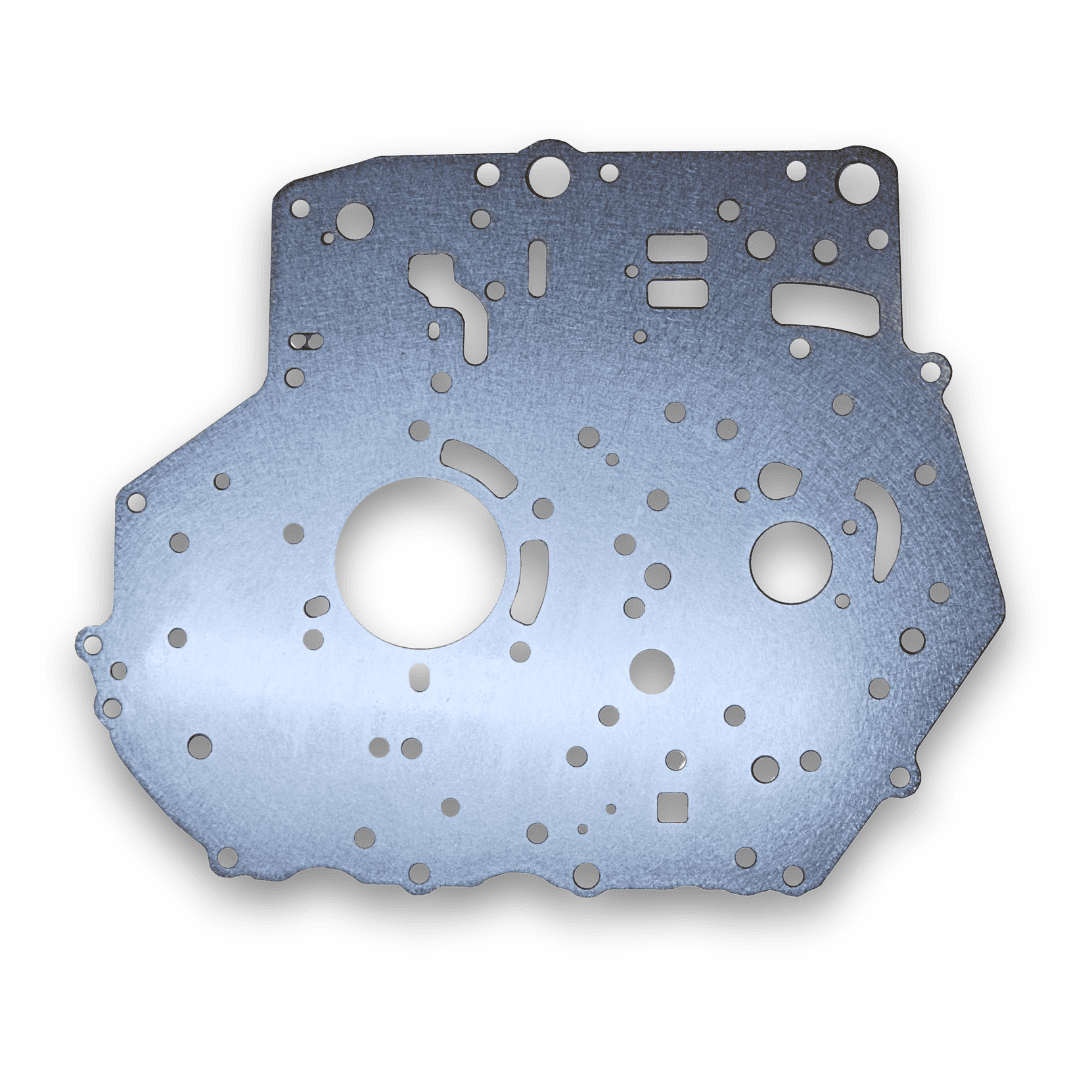

Getrag 7DCL750 CCP Middle Plate - Genuine OEM Ferrari & AMG

Getrag 7DCL750 CCP Middle Plate – Eliminates Fluid Leaks

The Clutch Control Panel is the hydraulic heart of your dual clutch transmission. When internal pressures fluctuate or shifting becomes erratic, the culprit is often wear or warping within the valve body assembly. The Getrag 7DCL750 CCP Middle Plate is a critical structural component that routes high pressure hydraulic fluid between the solenoids and the clutch packs. This genuine OEM replacement ensures perfect sealing and precise fluid delivery, restoring the lightning fast shifts your supercar was designed to deliver.

Engineered for Extreme Performance

Supercar transmissions operate under immense stress and extreme temperatures. Over time, the original middle plate can suffer from microscopic warping or surface scoring caused by contaminated fluid. This degradation allows hydraulic pressure to bleed across circuits, leading to delayed engagement, rough downshifts, and eventual clutch failure.

Installing a new Middle Plate eliminates these internal leaks. Manufactured to exact factory tolerances, this plate provides a perfectly flat mating surface for the valve body gaskets, ensuring maximum hydraulic integrity even during aggressive track use.

Genuine OEM Reliability

When rebuilding a complex transmission like the 7DCL750, precision is non negotiable. Aftermarket plates often fail to meet the strict dimensional requirements necessary for proper fluid routing, leading to immediate pressure faults and costly rework. This Getrag 7DCL750 CCP Middle Plate is a genuine OEM component, identical to the part installed on the factory assembly line. It guarantees perfect fitment and flawless operation in the Ferrari 458 Italia, Ferrari 458 Spider, Mercedes SLS AMG, Ford GT, and AMG GT. Protect your investment and ensure a successful rebuild by choosing authentic factory parts.

Features

Genuine OEM Getrag 7DCL750 CCP Middle Plate
Restores critical hydraulic pressure routing within the valve body
Eliminates internal fluid leaks caused by warped or scored plates
Resolves erratic shifting and delayed clutch engagement issues
Manufactured to exact factory dimensional tolerances
Provides a perfectly flat mating surface for CCP gaskets
Essential component for a complete Clutch Control Panel rebuild
Direct replacement for Ferrari 458 Italia and 458 Spider
Fully compatible with Mercedes SLS AMG and AMG GT models
Guarantees perfect fitment for Ford GT dual clutch transmissions

Weight: 3.5 lbs

Dimensions: 12 × 10 × 1 in
