Getrag 7DCL750 Clutch Temperature Sensor Kit
The Getrag 7DCL750 Clutch Temperature Sensor Kit addresses one of the most common failure points in older Getrag 7DCL750 gearboxes. The gearbox control module relies on this sensor to monitor clutch temperature in real time. When the sensor fails, the module loses the ability to manage clutch pressure and lubrication correctly. The transmission then generates fault codes and triggers a clutch overheat warning on the dashboard. This kit gives you the correct OEM replacement sensor and all necessary installation hardware in a single purchase.
One Sensor Body with Two Sensors for Both Clutch Packs

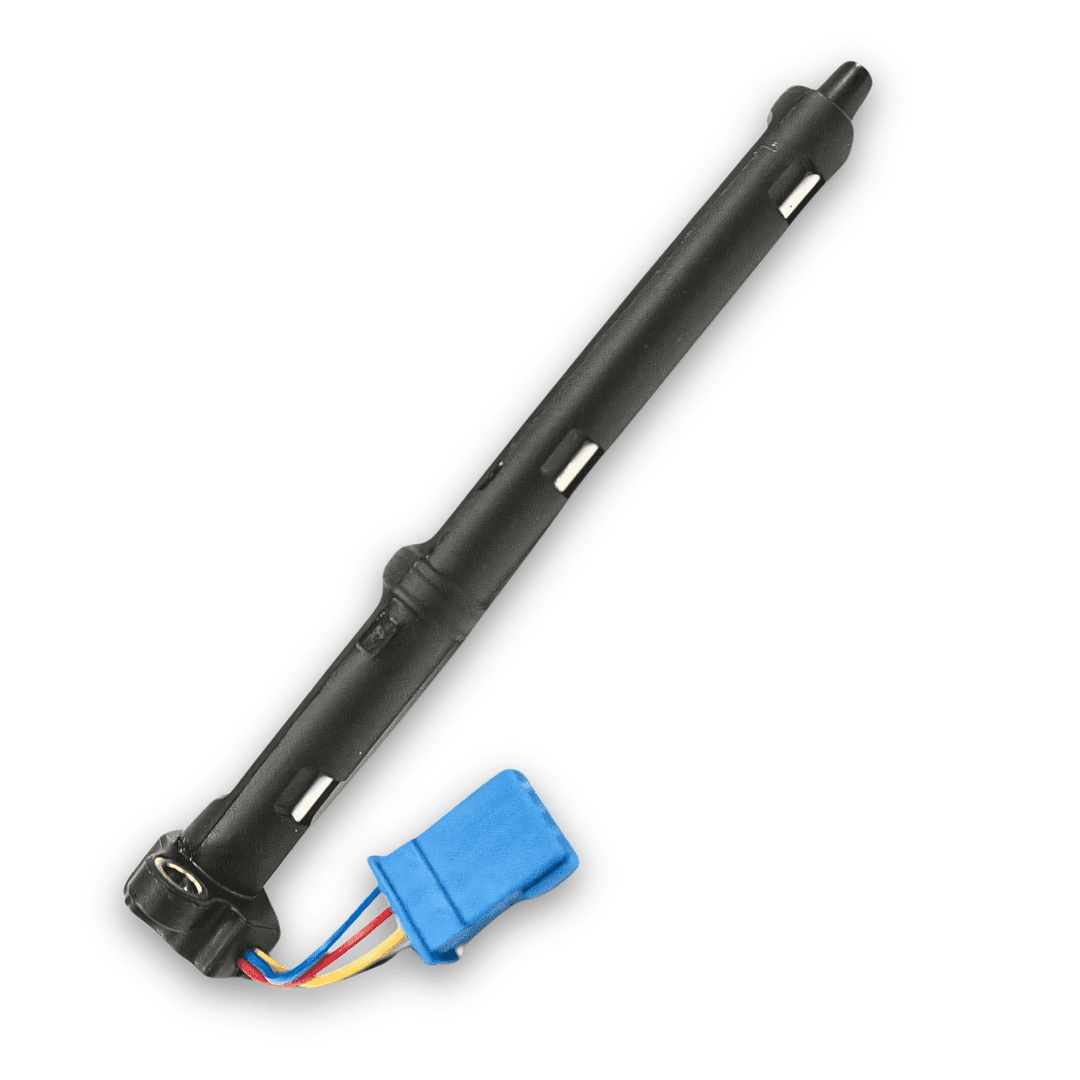

The clutch temperature sensor in the Getrag 7DCL750 is a single sensor body that contains two individual sensors. One sensor monitors the odd clutch pack. The other monitors the even clutch pack. Since both sensors share one unit, replacing the sensor body replaces both monitoring points at the same time. The sensor mounts directly on the CCP, which is the Clutch Control Panel. It connects to the gearbox control module through the transmission wiring harness.
OEM Kit with Complete Installation Hardware

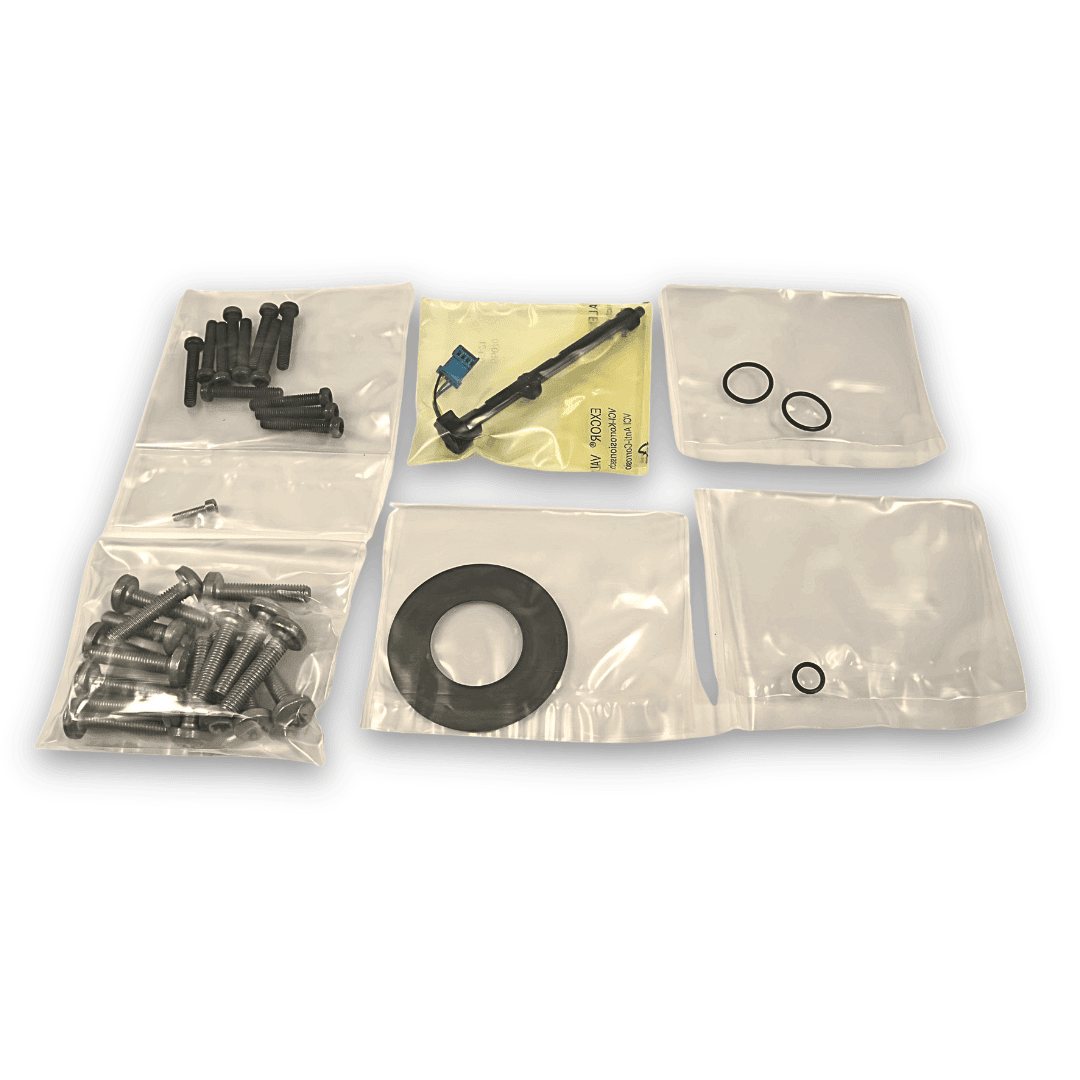

This Getrag 7DCL750 Clutch Temperature Sensor Kit is an OEM part sourced from Ferrari. Because replacing this sensor requires accessing the CCP and the surrounding transmission case, the kit includes all hardware encountered during the repair. The kit contains CCP to transmission case bolts, mid case bolts, and front cover bolts. It also includes additional seals that need replacement when the sensor is accessed. Note that this kit may not include every seal required for all specific model variants.
Fault Codes Associated with Sensor Failure
When the clutch temperature sensor fails in the Getrag 7DCL750, the gearbox control module generates specific fault codes. P0710 and P0711 indicate a signal from the even clutch temperature sensor that reads too low or too high. P0746 and P0747 indicate a signal from the odd clutch temperature sensor that reads too low or too high. While these codes point to the sensor, a qualified technician must verify the root cause before replacing the component.
Diagnose Before Replacing
The gearbox control module requires a reference voltage within a specific range to read the sensor correctly. When the reference voltage falls outside that range, the module interprets the reading as a sensor fault. Because of this, fault codes P0710, P0711, P0746, and P0747 can appear even when the sensor itself functions properly. A thorough diagnostic assessment is essential before replacing the sensor.
A qualified technician must inspect the wiring harness inside the transmission and in the transmission bay. The technician must also check the wiring between the control module and the transmission bay. Confirm that the reference voltage and wiring are correct before replacing the sensor.
Features List
- Getrag 7DCL750 Clutch Temperature Sensor Kit for odd and even clutch pack monitoring
- Single sensor body containing two individual sensors for both clutch packs
- Mounts on the CCP for direct gearbox control module integration
- Gearbox control module uses this sensor to adjust clutch pressure and lubrication
- Resolves fault codes P0710, P0711, P0746, and P0747
- Triggers a clutch overheat dashboard warning when it fails
- OEM part sourced from Ferrari for exact fitment and correct function
- Kit includes CCP to transmission case bolts, mid case bolts, and front cover bolts
- Kit includes additional seals accessed during the replacement procedure
- Common failure point in older Getrag 7DCL750 gearboxes
- Diagnostic inspection of wiring harness and reference voltage recommended before replacement
- Note: kit may not include all required seals for every specific model variant
