What vehicles is the Suspension Fill Tool compatible with?

This tool is compatible with all vehicles utilizing the Tenneco hydraulic suspension system including McLaren models like the 12C 650S and 720S as well as Rivian R1T and R1S vehicles.

What is the primary function of the Suspension Fill Tool?

The primary function is to allow for safe leak free pressure release from the Tenneco suspension system evacuate all air from the lines and recharge the pressure into the system after repair work.

Do I need a dealer computer to use this tool?

No this tool allows the suspension module to begin working again without the need to command pumps or valves with diagnostic scanners or dealer computers.

How do I clear fault codes after using the tool?

Code clearing can be done by a simple battery disconnection or hard reset procedure allowing the system to become operational again without dealer scan tools.

What materials are the tool components made of?

All components of the tool are constructed from high quality stainless steel or aluminum ensuring durability and resistance to corrosive hydraulic fluids.

What is the pressure rating for the tool components?

All components are rated to handle pressures of 200psi or above providing a significant safety margin for suspension service.

What is the minimum pressure required by the vehicle system?

A minimum of 80psi is required by the vehicle to allow the suspension system to return to normal operation.

Why are leak free connectors important?

Leak free connectors are vital because the Pentosin CHF 11S hydraulic fluid used in these systems is highly corrosive to many vehicle components and shop surfaces.

Does the tool include a water trap?

Yes the shop air connection includes pressure control and a water trap to ensure safe operation with any standard shop air compressor.

Are instructions included with the tool?

Yes all valves are clearly labeled and comprehensive instructions come with the tool to guide any technician in its proper use.

What is the operating pressure of the McLaren Tenneco system?

The McLaren Tenneco hydraulic suspension system operates at extremely high pressures up to 40 Bar which is approximately 580 PSI.

Why is pulling a vacuum necessary before filling?

Pulling a strong vacuum typically 30 inHg is necessary to evacuate all air from the system before introducing new fluid preventing cavitation and early component failure.

What happens if air enters the system during the fill process?

If air enters the system during the fill process the entire procedure must be restarted from the beginning to ensure no air pockets remain in the hydraulic lines.

What type of fluid does the Tenneco suspension system use?

The system requires Pentosin CHF 11S hydraulic fluid which must be handled carefully due to its corrosive properties.

What is the APMU and why is it important?

The APMU or Accumulator Pressure Management Unit maintains the desired pressure inside the system and must be put into maintenance mode to safely release pressure before service.

Can I use this tool for Rivian jounce line replacement?

Yes this tool is essential for bleeding and refilling the system after replacing leaking jounce lines or accumulators on Rivian R1T and R1S models.

How does this tool save money compared to dealer service?

By allowing independent shops to perform perfect evacuation and pressure fills this tool avoids the need for expensive dealer recalibration which can cost upwards of three thousand dollars.

What is the shipping weight and dimensions of the tool?

The complete tool kit has a shipping weight of 100 lbs and dimensions of 37 by 23 by 23 inches.

Is the tool currently in stock?

The tool is currently listed as Out of Stock. Please contact support for lead times and availability updates.

What is the return policy for the Suspension Fill Tool?

We offer a 30 day return window for the Suspension Fill Tool provided it is returned in its original condition.

HomeToolsSuspension Fill Tool for McLaren & Rivian

Back

Tools

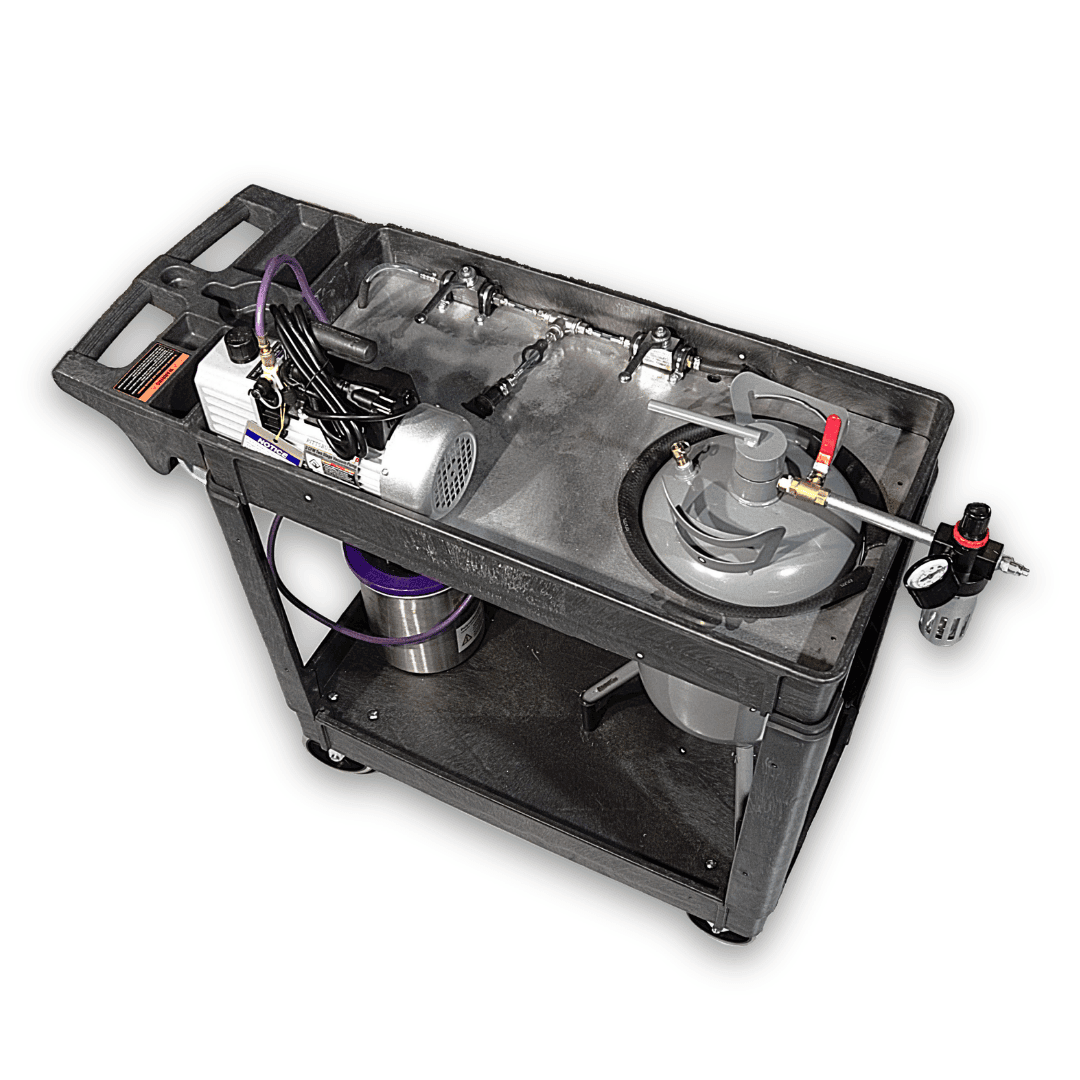

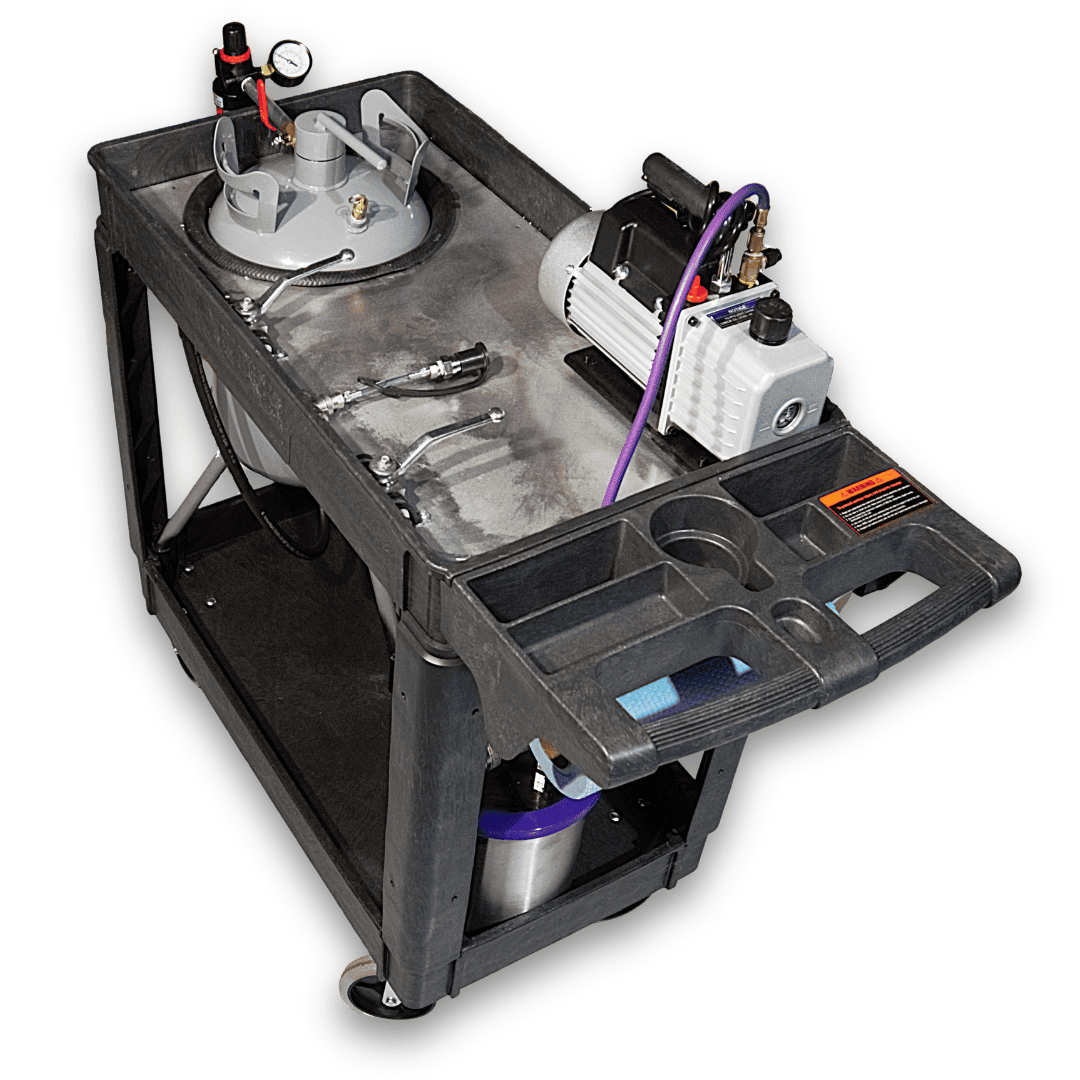

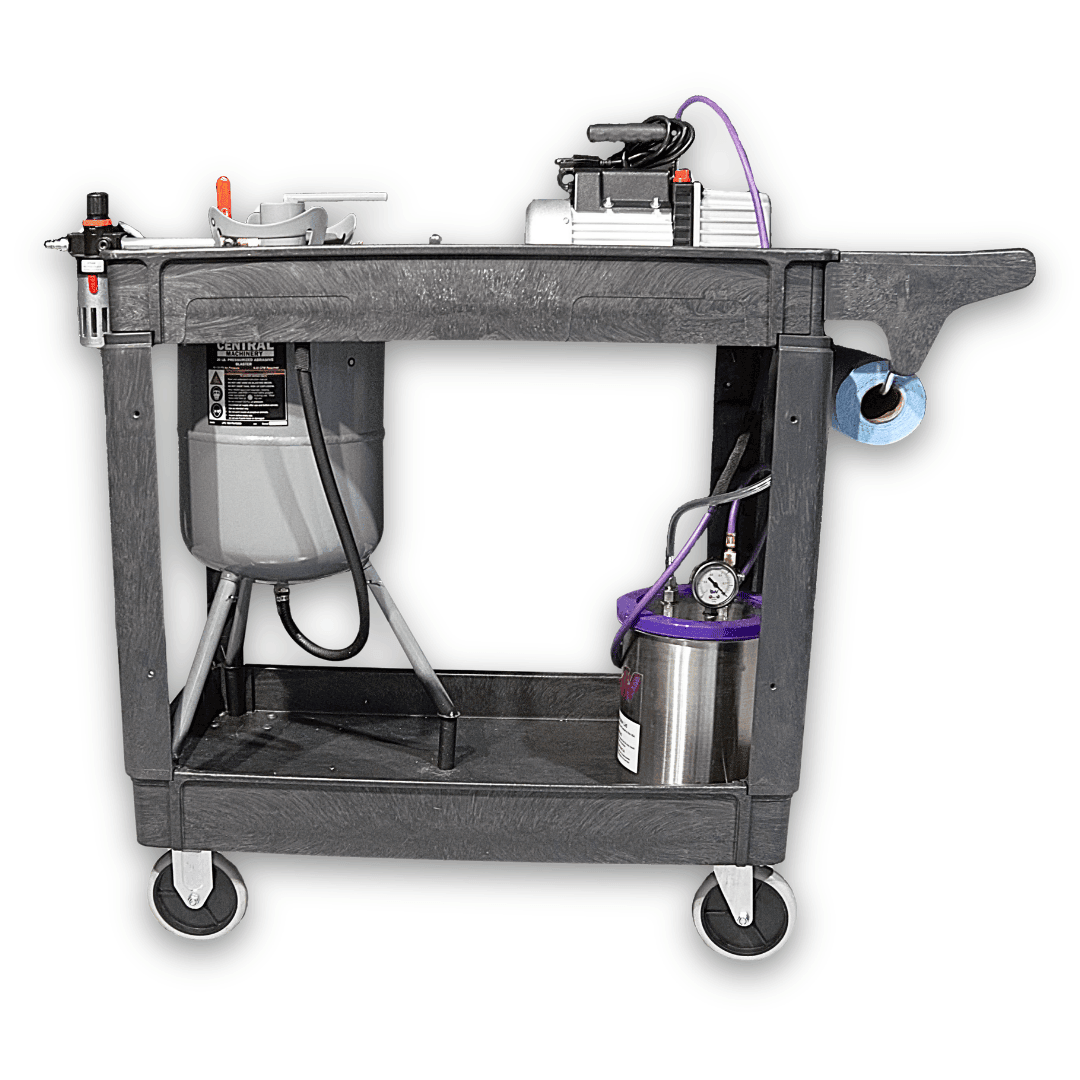

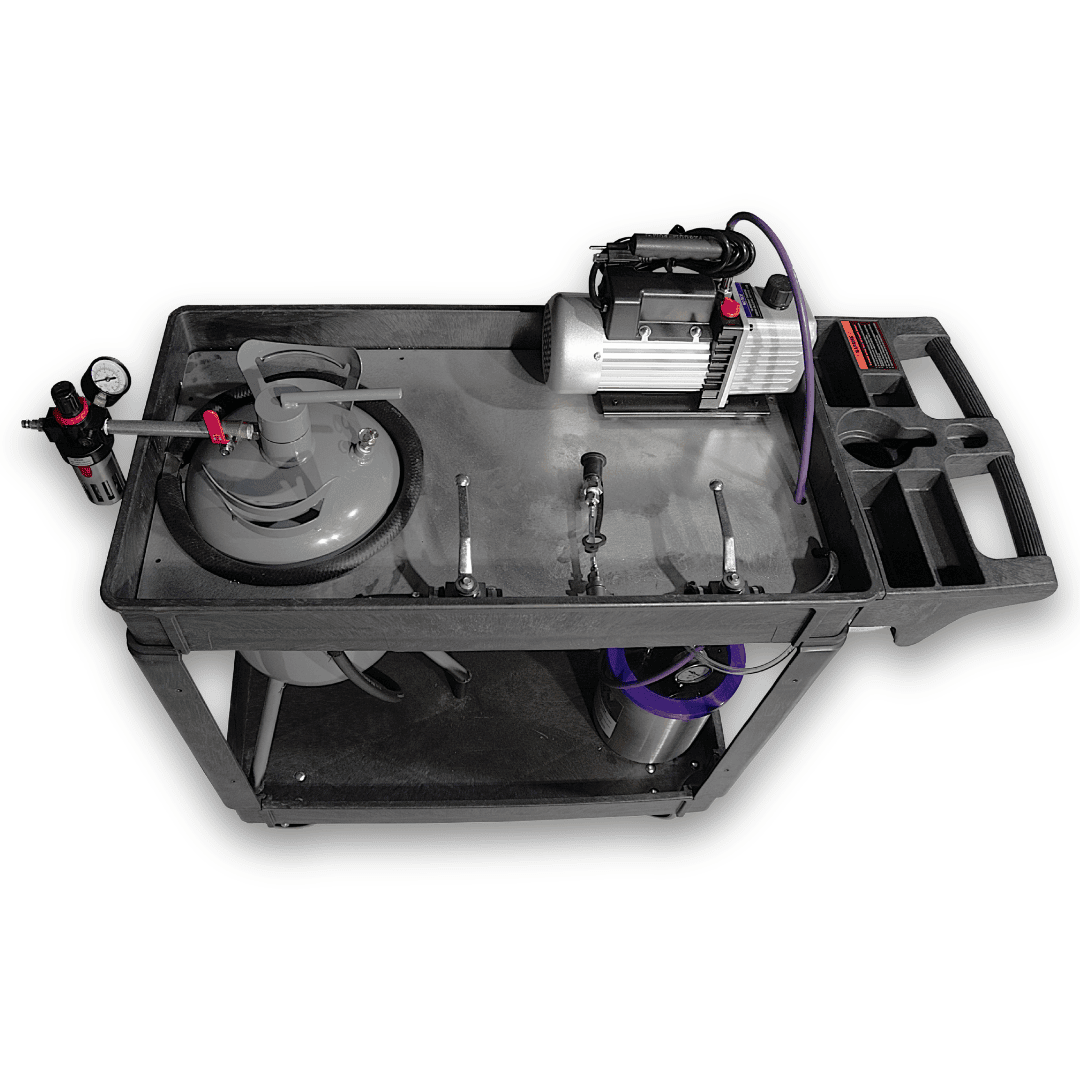

Suspension Fill Tool for McLaren & Rivian

$8,000.00

Out of stock

Sku: 2007

This tool allows for the safe, leak free, pressure release from the Tenneco suspension system to allow for repair work to be performed on the hydraulic system. Once repair work is completed, this tool also provides the ability to evacuate all air from the lines and to recharge the pressure into the system. This function will allow the car’s suspension module to begin working again without the need to command pumps or valves with diagnostic scanners or dealer computers. Code clear by battery disconnection or hard reset procedure can be done without dealer scan tools or computers to allow the system to become operational again if faults are stored. This tool is vital to any shop that replaces Rivian or McLaren hydraulic suspension accumulators (a service item), lines (braided lines are often a leak point) or fluid.
All components of the tool are stainless steel or aluminum and rated to pressures of 200psi or above. Shop air connection with pressure control and water trap ensure safe operation with any shop air compressor. A minimum of 80psi is required by vehicle to allow suspension system to return to operation. All connections are leak free connectors. This is vital to preserving vehicle and shop cleanliness and functionality as hydraulic fluid is corrosive to many components in the vehicle. All valves are clearly labeled and instructions come with the tool to guide any technician in the proper use of the tool.
Please email info@hollywoodmechanic.com if interested in purchasing this item.

Secure
Delivery

30-Days
Return

Advanced
Discount System

Suspension Fill Tool for McLaren & Rivian – Pro Auto Tools

Servicing modern hydraulic suspension systems requires precision and safety. The Suspension Fill Tool for McLaren Rivian provides the exact control needed to perform maintenance on Tenneco suspension systems. This tool allows technicians to safely release pressure from the hydraulic system without fluid loss or contamination. When repair work is complete, the tool effectively evacuates all air from the lines and recharges the system to the required operating pressure.

Eliminate the Need for Dealer Scanners

One of the most significant advantages of this performance auto tool is its ability to restore system functionality independently. By properly evacuating and recharging the hydraulic lines, the vehicle suspension module can begin working again without requiring commands from diagnostic scanners or dealer computers. Technicians can clear codes via battery disconnection or a hard reset procedure, allowing the system to become fully operational even if faults were previously stored. This capability makes the tool vital for any shop replacing hydraulic suspension accumulators, servicing braided lines, or performing fluid flushes.

Premium Construction and Leak Free Operation

Hydraulic fluid is highly corrosive to vehicle components, making cleanliness paramount during service. All connections on this tool are completely leak free, preserving both the vehicle and the shop environment. The internal components are manufactured from high quality stainless steel and aluminum, rated to withstand pressures of 200psi and above.

The integrated shop air connection features precise pressure control and a water trap, ensuring safe operation with any standard shop air compressor. The suspension system requires a minimum of 80 psi to return to normal operation. The manufacturer clearly labels every valve and includes detailed instructions to guide technicians in the proper use of the equipment.

Take a moment to watch our suspension tool video below for even more information and handling details. Please email info@hollywoodmechanic.com if interested in purchasing this item.

Features

Engineered specifically as a Suspension Fill Tool for McLaren Rivian applications
Enables safe and controlled pressure release from Tenneco suspension systems
Evacuates all air from hydraulic lines after repair work is completed
Recharges system pressure without requiring dealer diagnostic scanners
Allows code clearing via battery disconnection or hard reset procedures
Constructed with premium stainless steel and aluminum components
Rated for safe operation at pressures of 200psi and above
Includes shop air connection with integrated pressure control and water trap

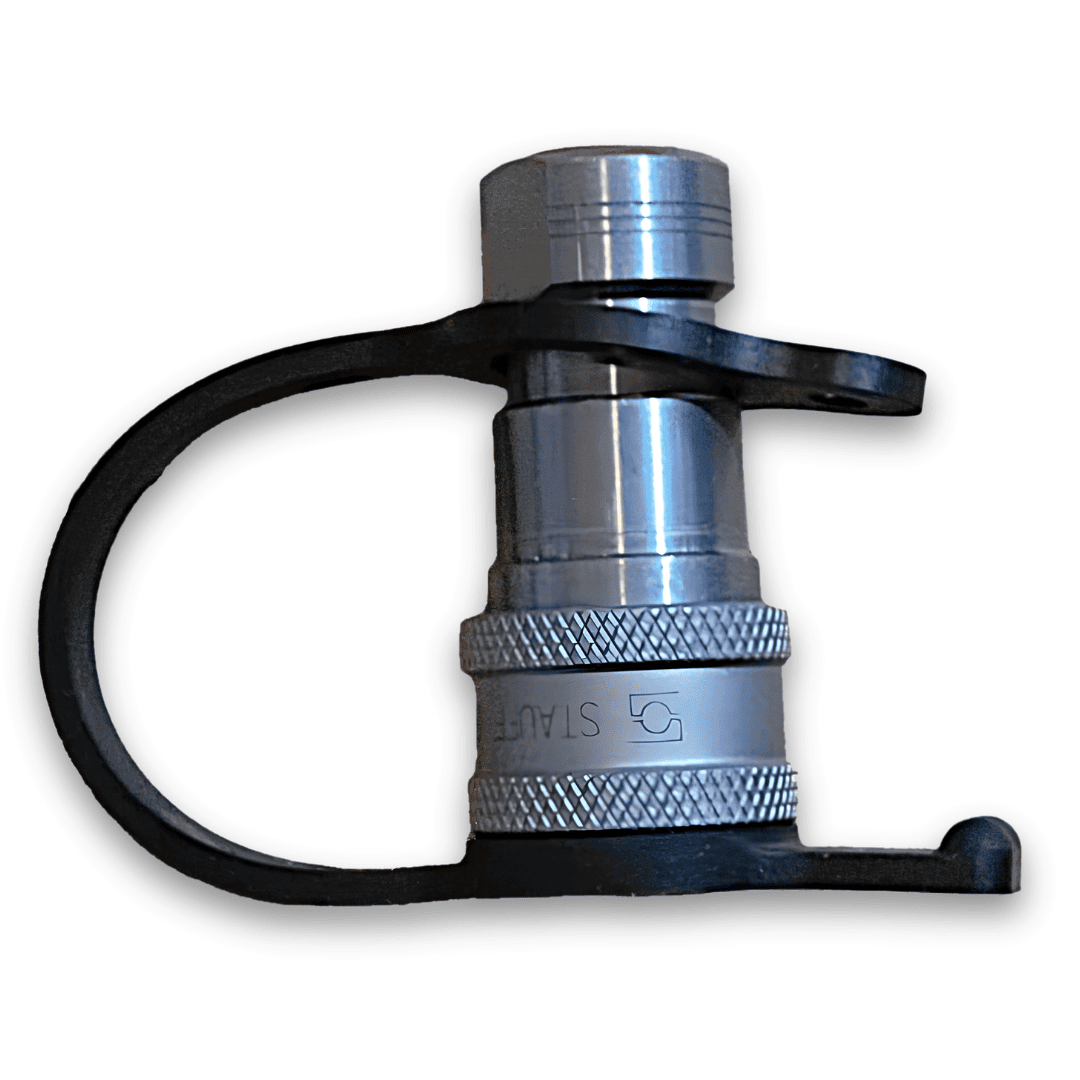

Features completely leak free connectors to prevent corrosive fluid spills
Requires a minimum of 80psi to return the vehicle suspension to operation

Weight: 100 lbs

Dimensions: 37 × 23 × 23 in
