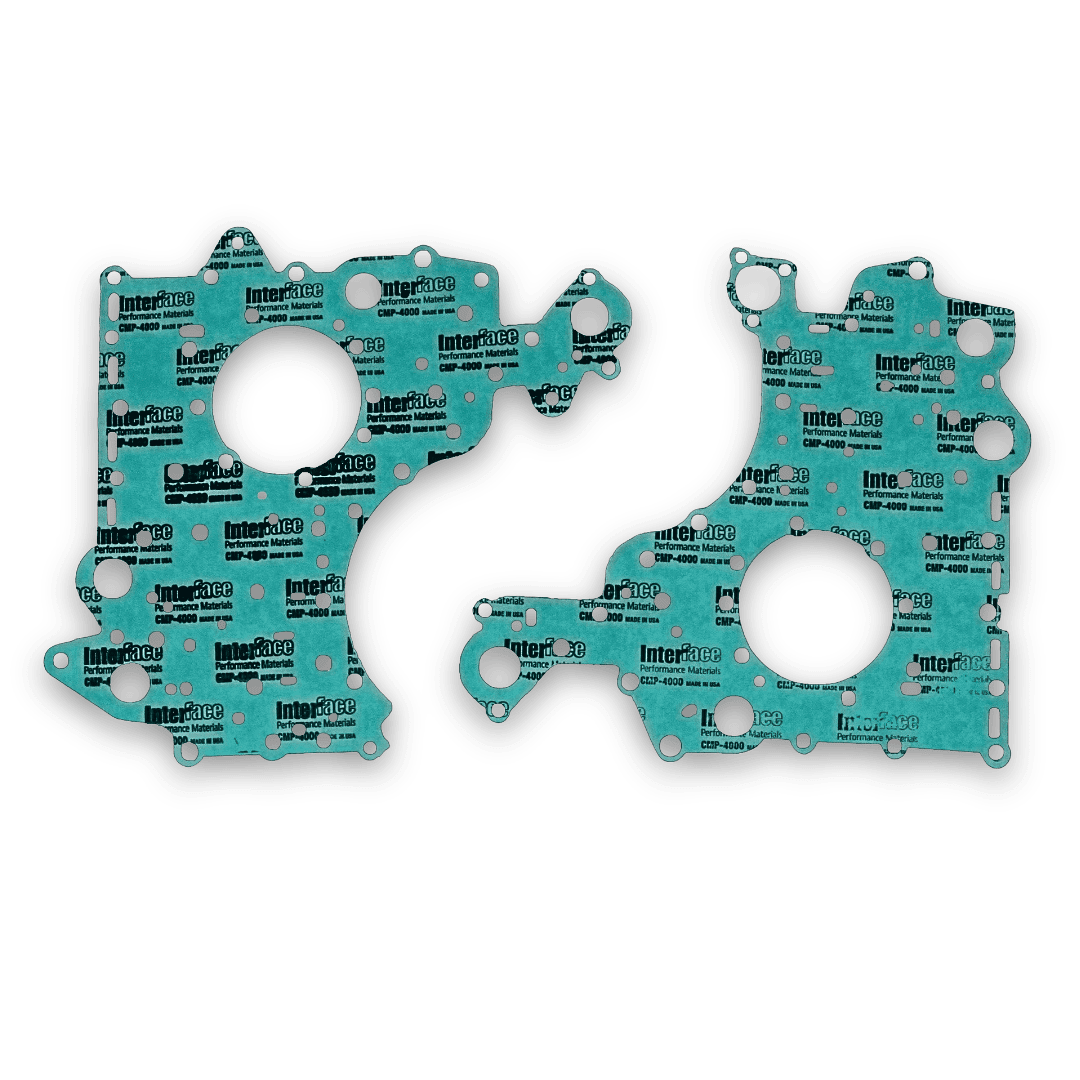

Getrag 7DCL750 SAP Gasket

The Getrag 7DCL750 SAP Gasket seals the Shift Actuating Panel valve body against the transmission housing. The SAP is one of the two primary valve bodies in the 7DCL750. It controls the hydraulic fluid routing that drives the gear selection actuators. Because the SAP operates under hydraulic pressure during every gear change, the gasket must maintain a perfect seal at all times. When it fails, pressure escapes past the valve body face. That pressure loss causes the transmission control unit to log SAP faults. In some cases, the gearbox loses the ability to select gears correctly. This gasket is not a minor consumable. It is a critical sealing component.

The Getrag 7DCL750 SAP Gasket is made from a specialized fibrous paper material. This material is engineered specifically for the dual clutch transmission environment. Standard automotive gasket materials cannot withstand the combination of hydraulic fluid exposure, high operating temperatures, and the clamping pressures used in the 7DCL750 SAP valve body. Because of that, using the wrong gasket material in this application will result in premature failure. The fibrous paper specification used in this gasket is the same material used in the OEM assembly. That is the only material that performs correctly in this application.

This gasket has a defined service life. Over time, the fibrous paper compresses under the clamping load of the SAP valve body bolts. It also hardens from repeated heat cycling. When the material compresses past its sealing threshold, it allows fluid to weep past the valve body face. That weeping is often slow at first. It goes unnoticed until the transmission logs a pressure fault or shift quality degrades. For that reason, this gasket must be replaced any time the SAP valve body is removed for service. Reinstalling a used gasket on a freshly serviced SAP is a shortcut that creates the next failure.

The Shift Actuating Panel is responsible for directing hydraulic pressure to the gear selection actuators inside the 7DCL750. When the driver or the transmission control unit commands a gear change, the SAP routes fluid to the correct actuator to execute that shift. Because this happens on every single gear change, the SAP valve body and its gasket are under constant hydraulic load. That is why the gasket material specification and the replacement interval both matter. A failed SAP gasket does not just cause a leak. It causes shift failures and transmission faults that affect driveability.

The Getrag 7DCL750 is used in the Ferrari 458 Italia, 458 Spider, 458 Speciale, 488 GTB, 488 Spider, Ferrari FF, GTC4 Lusso, Mercedes AMG GT, and Ford GT. This gasket fits all 7DCL750 applications. Contact us before ordering if you need to confirm fitment for a specific variant or build year.
