*Coming Soon* CSF High Performance Aluminum Radiator - Ferrari 360 Models - Hollywood Mechanic Car Repair Los Angeles Certified Shop

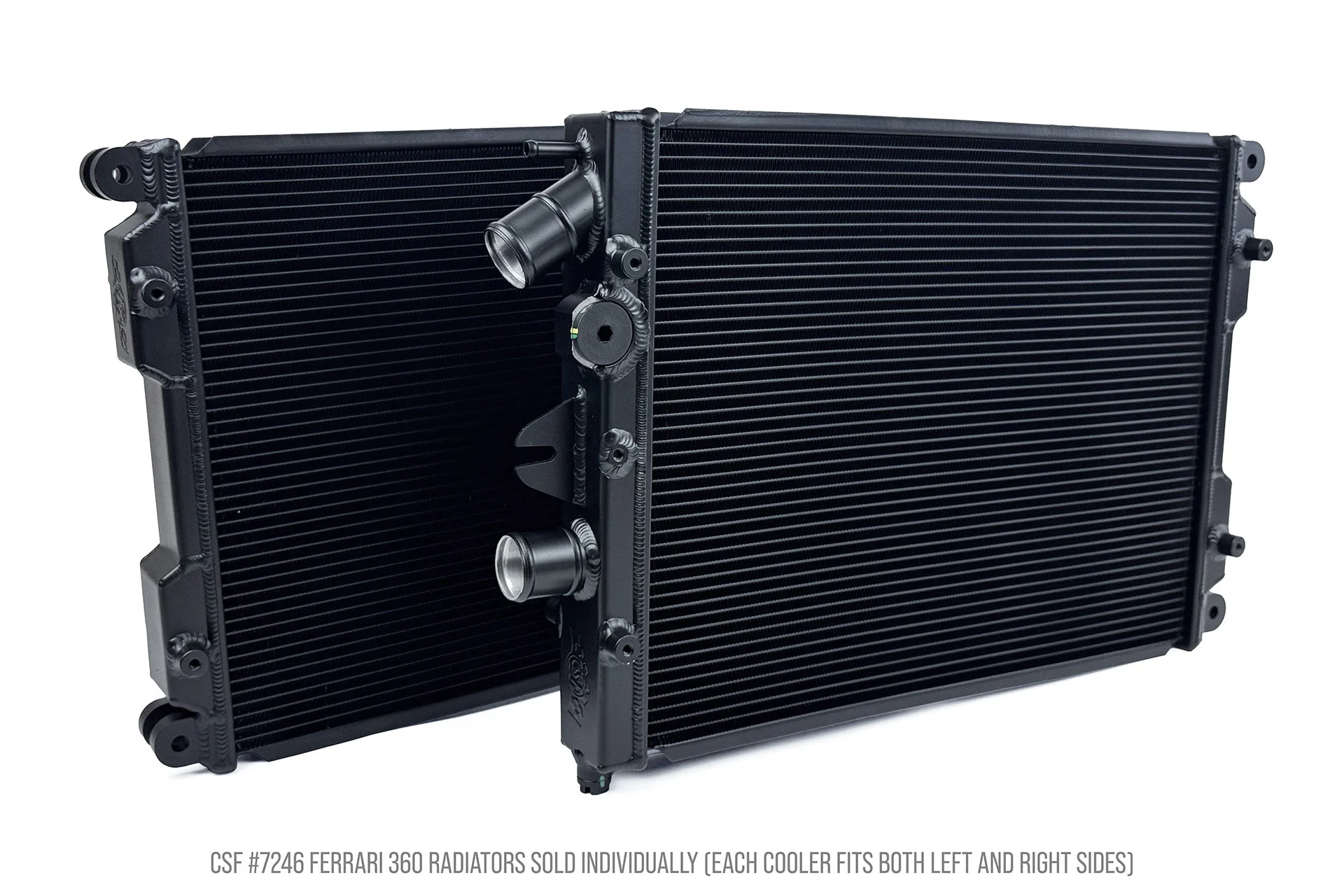

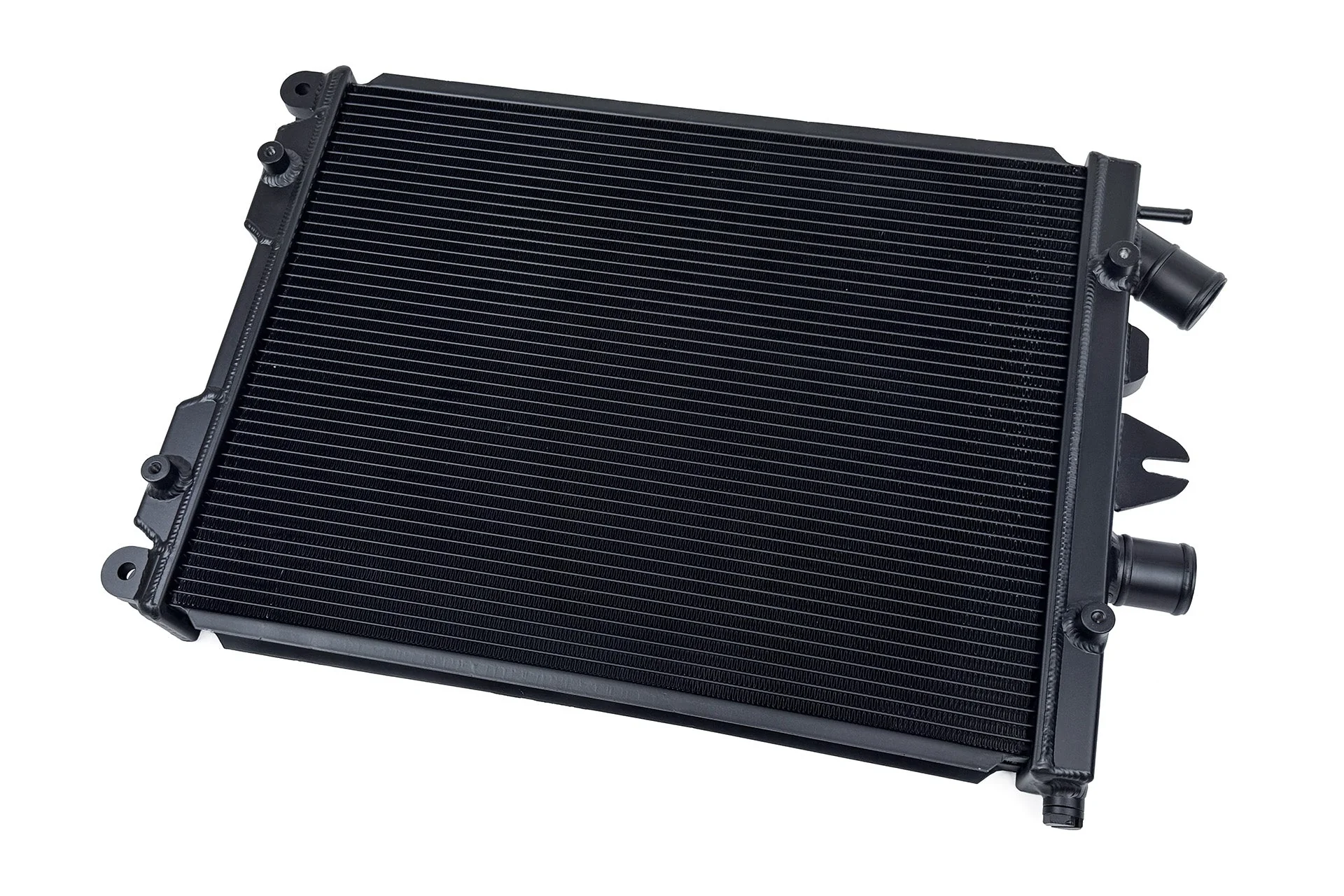

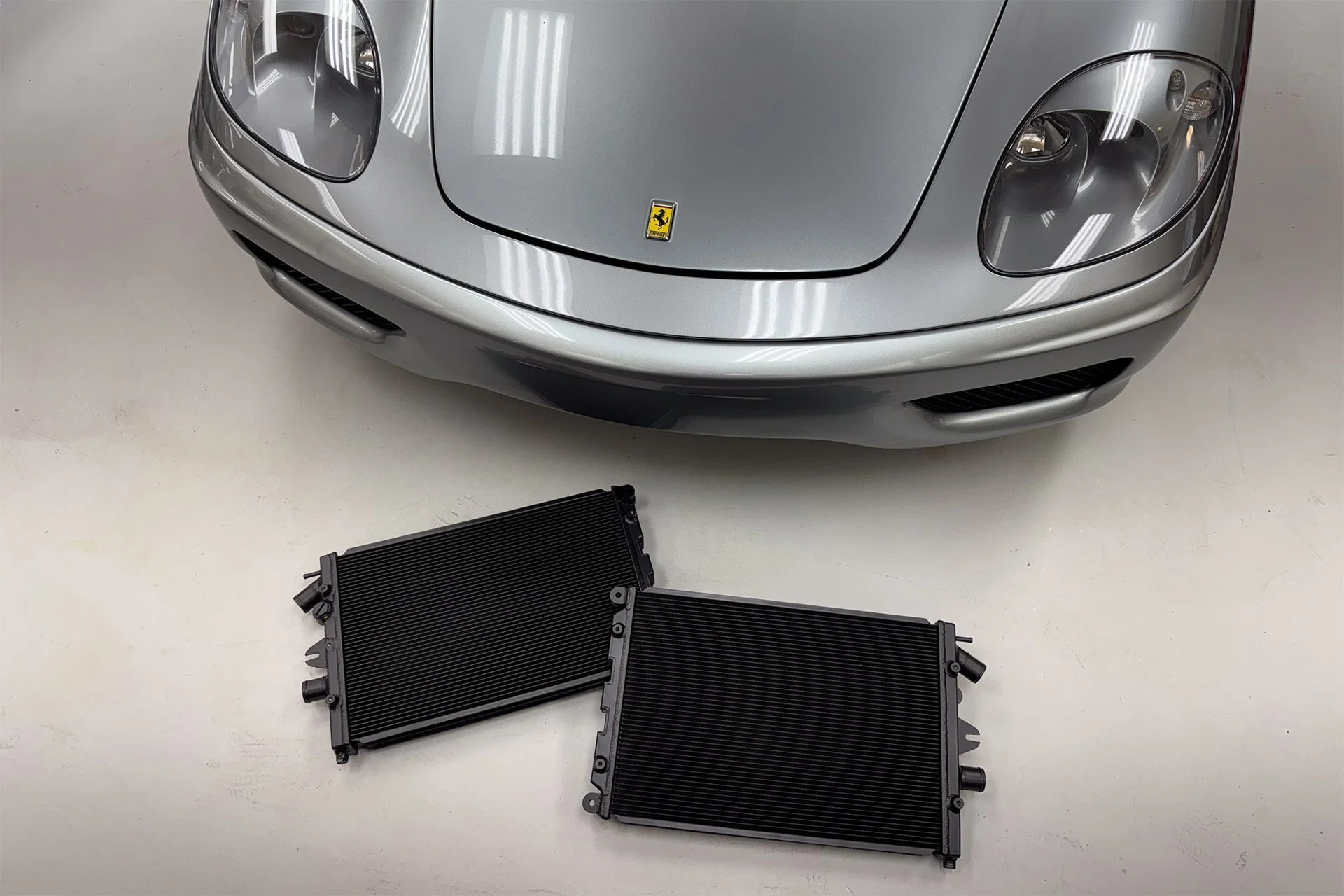

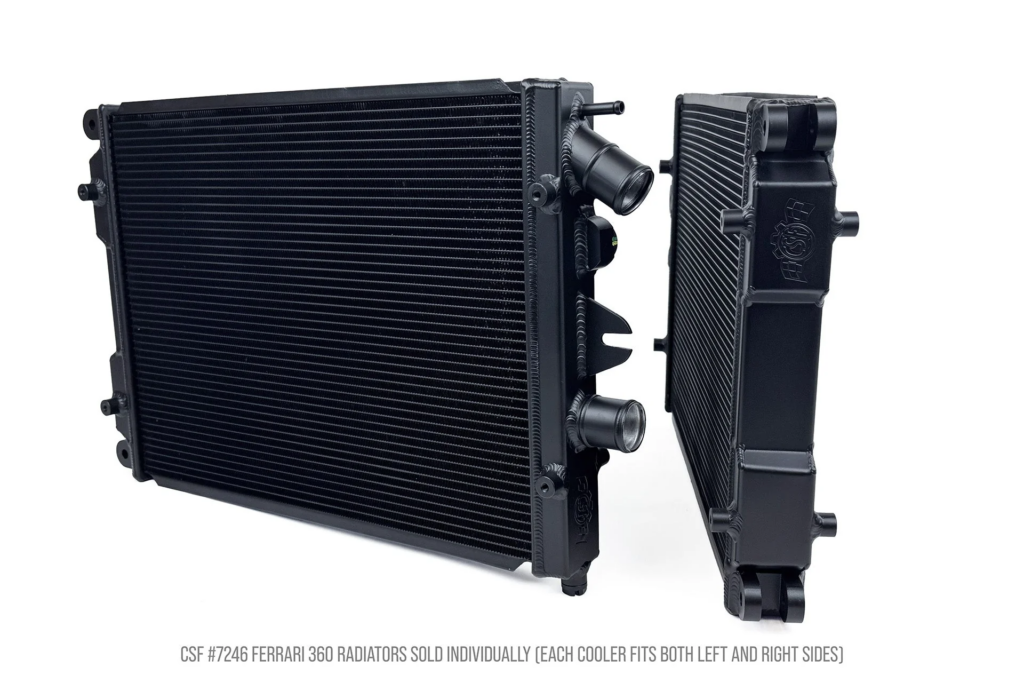

Designed as a direct OEM replacement, this all-aluminum radiator delivers significantly improved cooling performance and long-term durability for the Ferrari 360 Modena, Spider, Challenge, and Challenge Stradale.

As these cars age, the factory radiators—aluminum cores crimped to plastic end tanks—become a known weak point. This CSF-built upgrade eliminates that failure point with a fully TIG-welded, all-aluminum construction, providing greater strength, reliability, and heat dissipation.

Engineered to manage the additional heat generated by aggressive street driving, track use, and modern performance demands, it maintains OEM fit, finish, and installation.

CSF radiators are designed, tested, and manufactured in-house using military-grade aluminum. CSF is an OE supplier to multiple global manufacturers, with all units produced to ISO-certified standards.

Key Benefits

Up to 25% increase in heat transfer efficiency
2-row, 42mm all-aluminum core with increased coolant capacity
CSF 5mm multi-louvered fin technology for improved airflow and thermal recovery
CSF exclusive B-Tube technology, increasing heat transfer ~15% over standard oval tubes

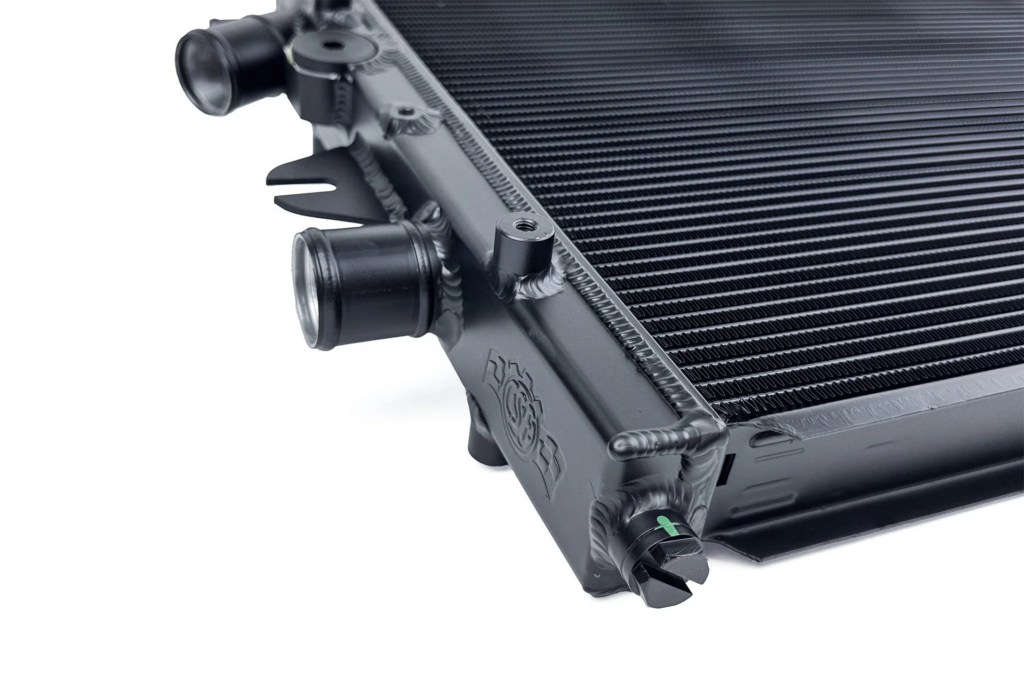

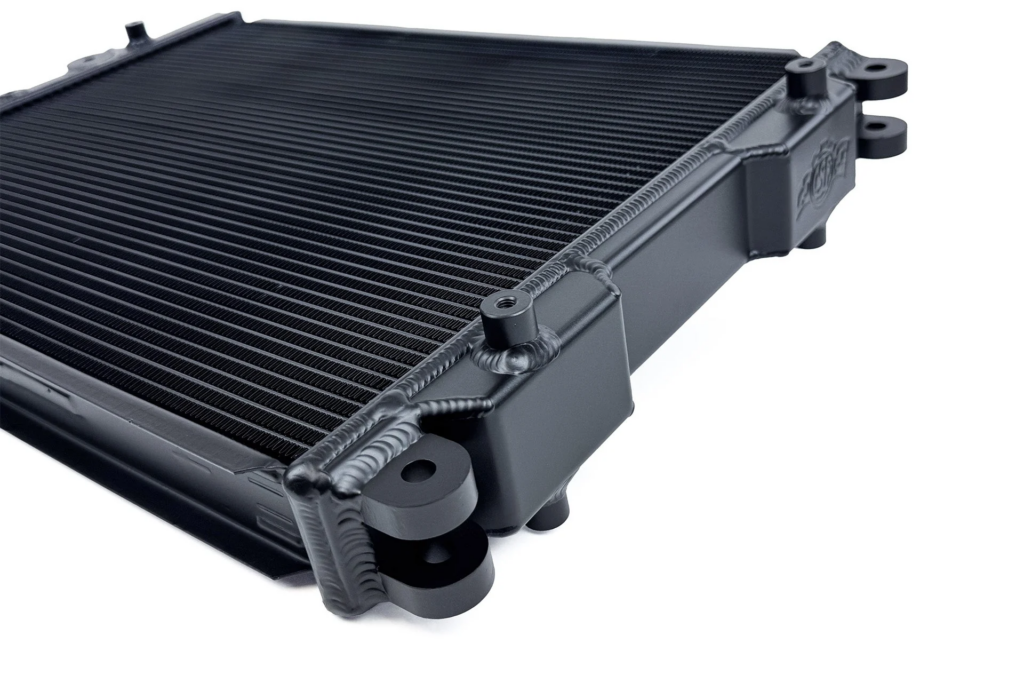

TIG-welded aluminum end tanks (no plastic)
Satin black OEM-style finish

Design & Fitment

Direct plug-and-play replacement
Fits factory mounting points and ducting
Designed to fit both left and right sides

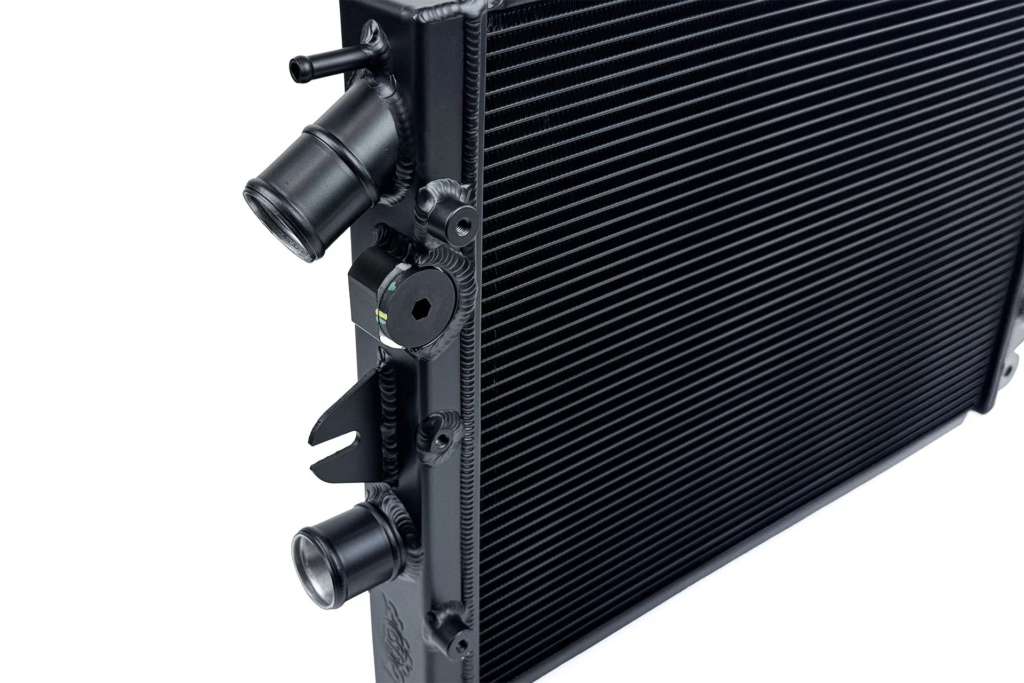

Dual coolant sensor ports (OE or M22x1.5 aftermarket sensors supported)
Typical installation time: 2–3 hours

Warranty:

https://csfrace.com/pages/warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, for 2 years from the date of purchase to the original purchaser of the vehicle in which the radiator was originally installed.

Fitment:
